Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 29" -
Groupset SX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 Butted Cromoly
Suspension Fork
Kona Plus fork 110mm spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM SX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM SX-Eagle
Cassette
SRAM SX-Eagle 11-50t 12spd
Crank
SRAM SX-Eagle, 32t X-Sync Eagle
Bottom Bracket
SRAM 73mm
Chain
SRAM SX-Eagle
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB ST i30 2.0 TCS
Spokes
Stainless Black 14g
Tires
WTB Ranger TCS 29x2.6"
Brakes
Brakes
SRAM Level T
Brake Levers
SRAM Level T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
TH ZST No.10
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.32 mm | 1.27 mm | 1.2 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 693 mm | 722 mm | 750 mm | 789 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 592 mm | 601 mm | 610 mm | 619 mm |
| Reach | 429 mm | 454 mm | 479 mm | 514 mm |
| Top Tube Length | 586 mm | 614 mm | 641 mm | 679 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1119 mm | 1148 mm | 1177 mm | 1215 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 699 mm | 735 mm | 772 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

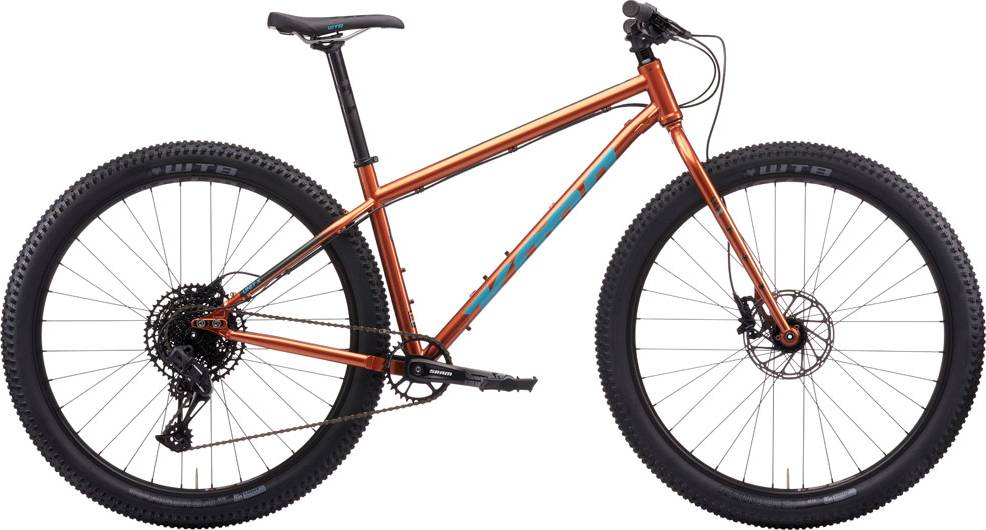

Unit X is a Kona Unit model. Kona released 20 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Kona Unit 2021 is the cheapest bike model and costs 1249$. Kona Unit X 2021 is the most expensive one and costs 1499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Kona Unit X price was 1499$. Comparing this to the average Crosscountry bike price, we see that the price is 27.08% smaller.
Overview of components
Wheels
The wheels on Unit X are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Kona Unit X bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
