Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 29" -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

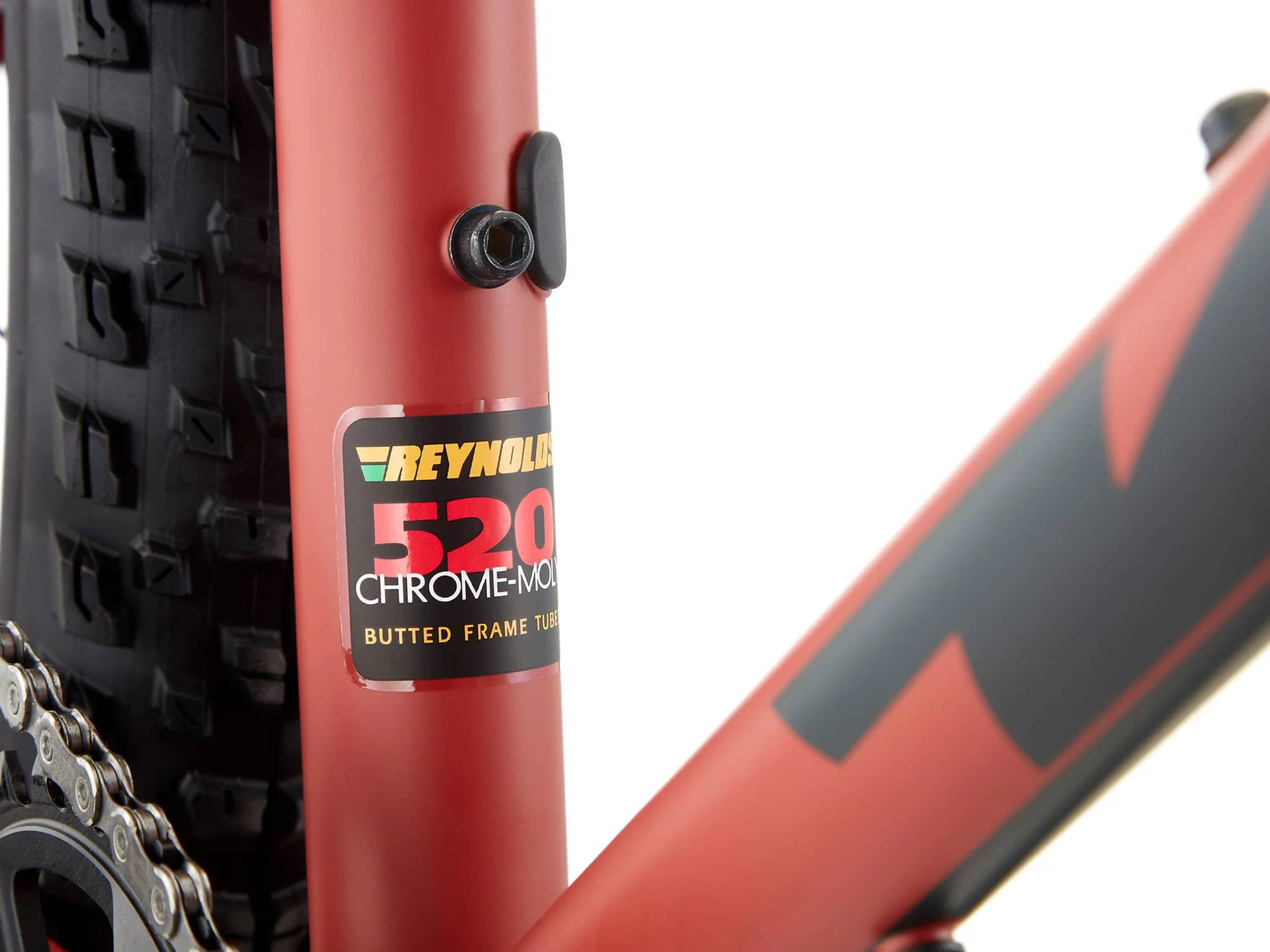

Reynolds 520 Butted Cromoly
Suspension Fork
Kona Plus Fork 110mm spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore 12spd
Cassette
Shimano Deore 10-51t 12spd
Crank
Prowheel 12spd, 32t
Bottom Bracket
Prowheel 73mm
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm (centerlock)
Rear Hub
Shimano 148x12mm (centerlock)
Rims
WTB ST i30 2.0 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6", Rear: Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"
Brakes
Brakes
Shimano MT410 Hydraulic
Brake Levers
Shimano MT410 Hydraulic
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
TH ZST No.10
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.32 mm | 1.27 mm | 1.2 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 693 mm | 722 mm | 750 mm | 789 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 592 mm | 601 mm | 610 mm | 619 mm |
| Reach | 429 mm | 454 mm | 479 mm | 514 mm |
| Top Tube Length | 586 mm | 614 mm | 641 mm | 679 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1119 mm | 1148 mm | 1177 mm | 1215 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 699 mm | 735 mm | 772 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

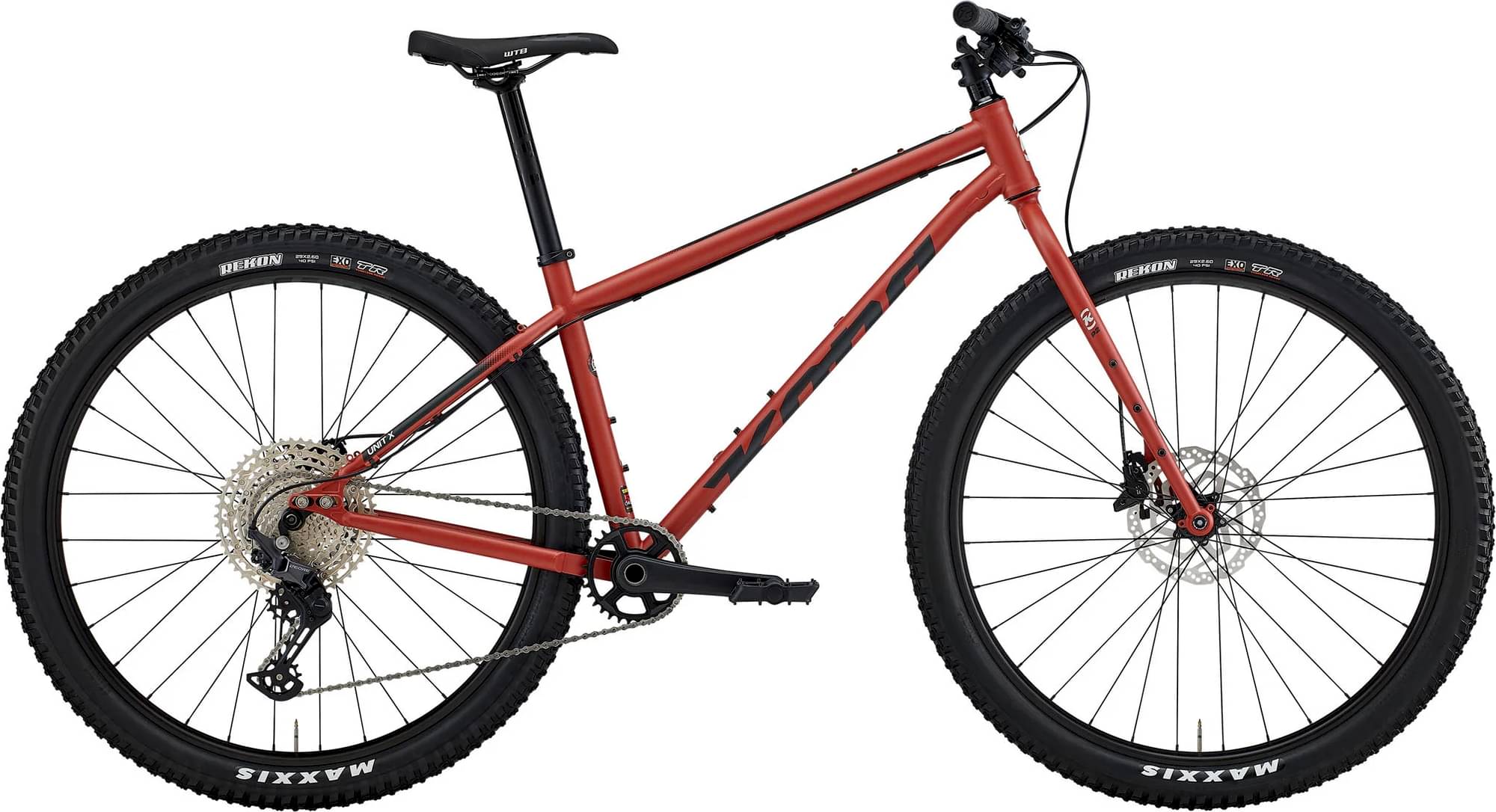

Model Overview
Unit X is part of the Kona Unit model. There are 20 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Kona Unit 2023 has a starting price of 1399$. Kona Unit X 2023 on the other hand is the most expensive at 1599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 1599$. Comparing the average cost of a Crosscountry bike to this one, you will see that Unit X price is 19.14% lower.
Unit X components
Wheels size
When it comes to wheels, the Unit X bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.

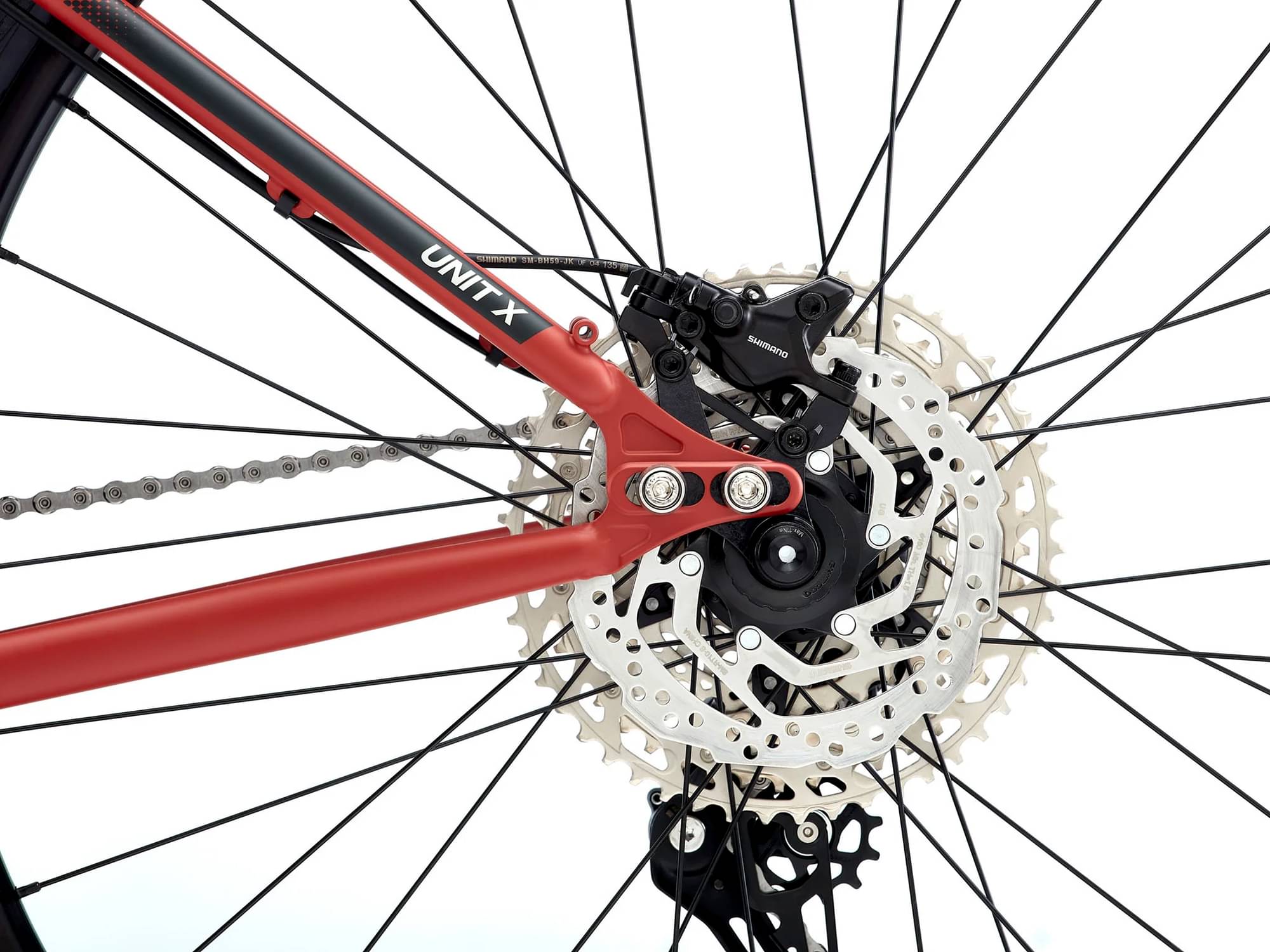

Brakes
For your safety, it is important to have quality breaks on your bike. Kona Unit X has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
