Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon by Deda
Suspension Fork
Kona Carbon by Deda
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11-28t 11spd
Crank
34/50t
Bottom Bracket
FSA Press Fit 30
Chain
KMC X11
Pedals
n/a
Wheels
Front Hub
Shimano RS610 Tubeless Wheelset
Rear Hub
Shimano RS610 Tubeless Wheelset
Rims
Shimano RS610 Tubeless Wheelset
Spokes
Shimano RS610 Tubeless Wheelset
Tires
Continental GranSport Race 700x28c 60TPI Folding
Brakes
Brakes
TRP RG957
Brake Levers
Shimano 105
Disk Rotors
n/a
Cockpit
Stem
Kona Road
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA No.42/ACB
Seat
Saddle
Selle San Marco Era Startup w/manganese rails
Seatpost
Kona Thumb w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 258 mm | 261 mm | 261 mm | 264 mm | 264 mm |
| Front Center | 593 mm | 599 mm | 609 mm | 619 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 61 mm | 62 mm | 59 mm | 56 mm |
| Stack | 544 mm | 565 mm | 582 mm | 598 mm | 614 mm |
| Reach | 391 mm | 394 mm | 399 mm | 409 mm | 418 mm |
| Top Tube Length | 540 mm | 555 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 165 mm | 185 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 423 mm | 423 mm | 427 mm |
| Wheelbase | 1001 mm | 1009 mm | 1021 mm | 1032 mm | 1045 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 790 mm | 805 mm | 825 mm | 855 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

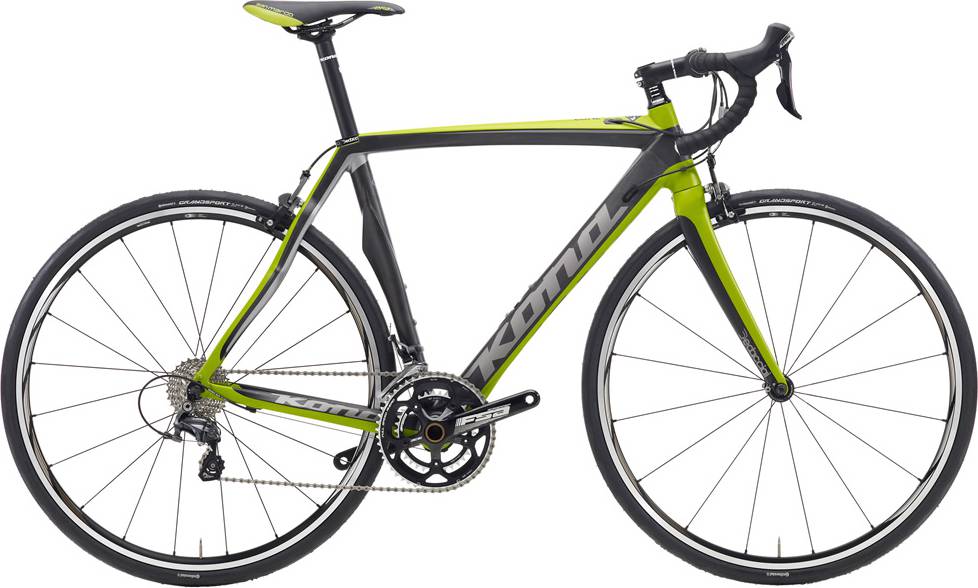

ZONE ONE is a Kona Zone model. Kona released 8 bikes variations of this model so far. Take a sneak peek at all Kona Zone bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the ZONE ONE model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
