Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon by Deda
Suspension Fork
Kona Carbon by Deda
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 11-28t 11 spd
Crank
34/50t
Bottom Bracket
FSA 386 Evo Press Fit 30
Chain
Shimano Ultegra
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Ultegra Tubeless Wheelset
Rear Hub
Shimano Ultegra Tubeless Wheelset
Rims
Shimano Ultegra Tubeless Wheelset
Spokes
Shimano Ultegra Tubeless Wheelset
Tires
Continental GranPrix 4 Season 700x28c
Brakes
Brakes
TRP RG957
Brake Levers
Shimano Ultegra
Disk Rotors
n/a
Cockpit
Stem
FSA Team Issue Carbon
Handlebar
FSA Team Issue Carbon
Grips
Kona Cork Tape
Headset
FSA No. 42/CF/ACB
Seat
Saddle
Selle Italia SL
Seatpost
FSA Team Issue Carbon w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.47 mm |
| Bottom Bracket Height | 296 mm | 299 mm | 299 mm | 302 mm | 302 mm |
| Front Center | 593 mm | 599 mm | 609 mm | 619 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 74 mm | 74 mm | 71 mm | 67 mm |
| Stack | 549 mm | 571 mm | 585 mm | 603 mm | 615 mm |
| Reach | 389 mm | 393 mm | 398 mm | 407 mm | 418 mm |
| Top Tube Length | 540 mm | 555 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 165 mm | 185 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 423 mm | 423 mm | 427 mm |
| Wheelbase | 1001 mm | 1009 mm | 1021 mm | 1032 mm | 1045 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 751 mm | 783 mm | 803 mm | 829 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

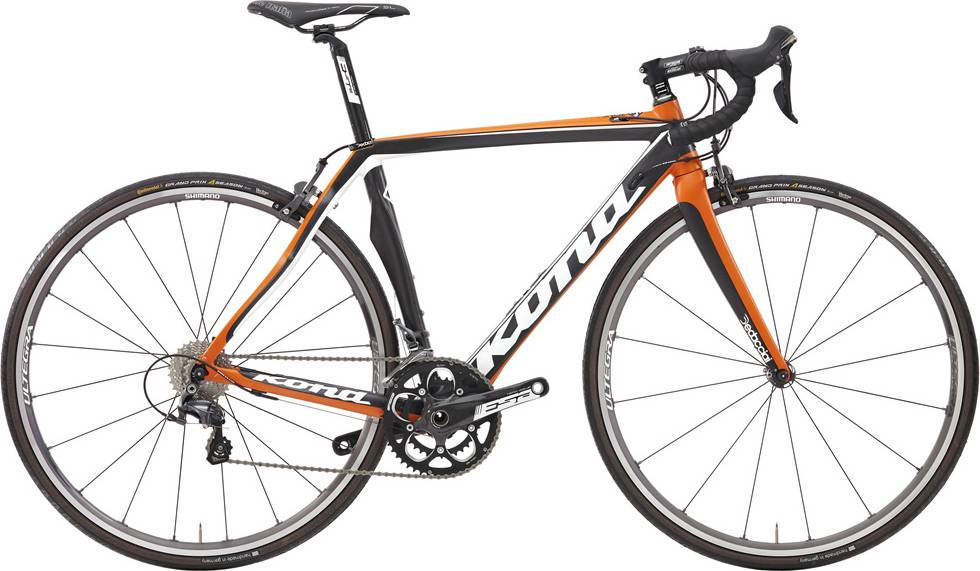

ZONE TWO is part of the Kona Zone model. Kona launched 8 bikes of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fatbike bikes average price
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
ZONE TWO components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The ZONE TWO 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona ZONE TWO has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
