Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon by Deda
Suspension Fork
Kona Carbon by Deda
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 11-28t 11spd
Crank
34/50t
Bottom Bracket
FSA 386 Evo Press Fit 30
Chain
Shimano Ultegra
Pedals
n/a
Wheels
Front Hub
Shimano Ultegra Tubeless Wheelset
Rear Hub
Shimano Ultegra Tubeless Wheelset
Rims
Shimano Ultegra Tubeless Wheelset
Spokes
Shimano Ultegra Tubeless Wheelset
Tires
Continental GranPrix 4 Season 700x28c folding
Brakes
Brakes
TRP RG957
Brake Levers
Shimano Ultegra
Disk Rotors
n/a
Cockpit
Stem
EA70
Handlebar
Easton EC70 SL3
Grips
Kona Cork Tape
Headset
FSA No. 42/CF/ACB
Seat
Saddle
Selle San Marco Concor Startup w/Magnesium Rails
Seatpost
EA70 w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 296 mm | 299 mm | 299 mm | 302 mm | 302 mm |
| Front Center | 593 mm | 599 mm | 609 mm | 619 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 73 mm | 74 mm | 71 mm | 67 mm |
| Stack | 544 mm | 565 mm | 582 mm | 598 mm | 614 mm |
| Reach | 391 mm | 394 mm | 399 mm | 409 mm | 418 mm |
| Top Tube Length | 540 mm | 555 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 165 mm | 185 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 423 mm | 423 mm | 427 mm |
| Wheelbase | 1001 mm | 1009 mm | 1021 mm | 1032 mm | 1045 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 790 mm | 805 mm | 825 mm | 855 mm | 865 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

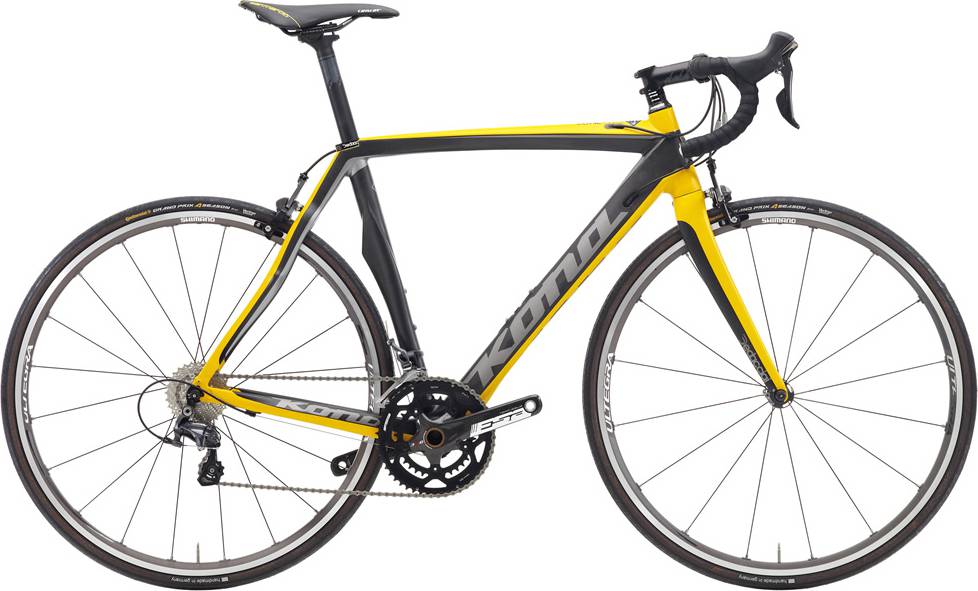

ZONE TWO completes the Kona Zone model. Kona released 8 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the ZONE TWO model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona ZONE TWO is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
