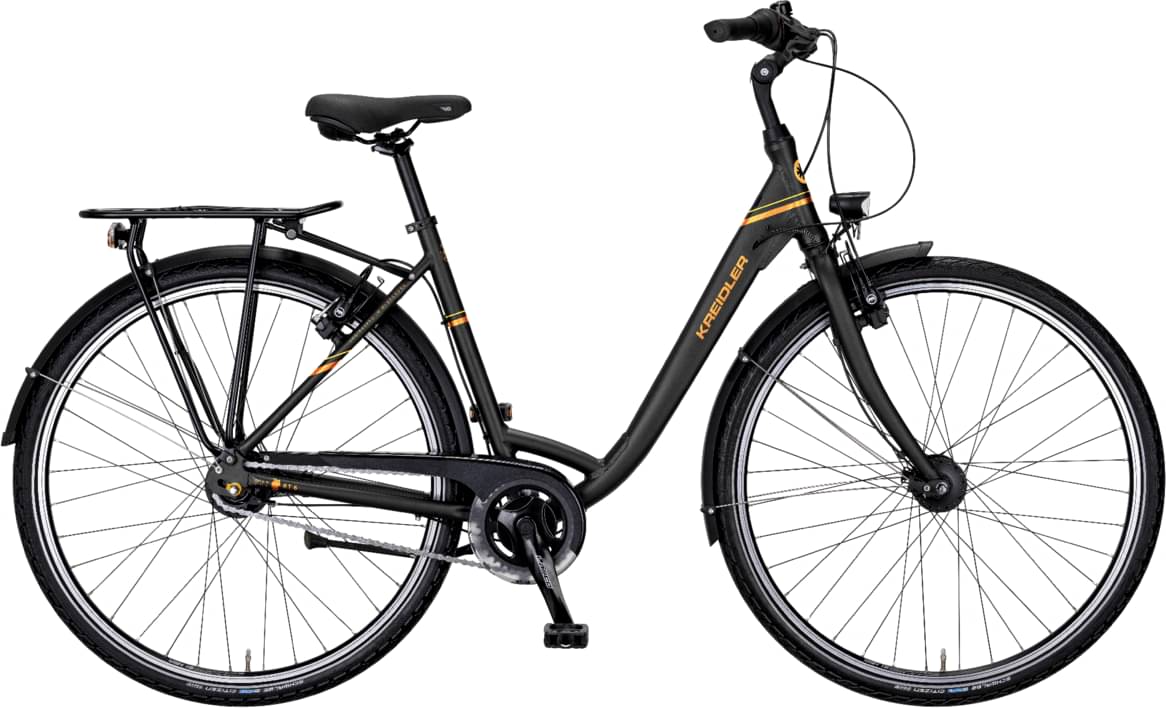

kreidler Raise RT6 Shimano Nexus 8-speed coaster brake HS11 2023
2023 Urban
Weight | 17.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, 28" City
Suspension Fork
28" Aluminium,
Rear Shock
N/V
Drivetrain
Shift Levers
Shimano Nexus 8-speed coaster brake
Cassette
Shimano 18 teeth
Crank
Shimano Nexus 8-speed coaster brake 38 teeth
Bottom Bracket
Lasco Aluminium, 170 mm, 38 teeth
Chain
KMC Z1 EPT
Chain Guide
Horn Catena 06
Pedals
Marwi SP-813
Wheels
Front Hub
Shimano DH-C3000, hub dynamo, 36 holes
Rear Hub
Shimano Nexus 8-speed SG-C6001-8C, 36 holes, coaster brake
Rims
Schürmann YAK19 Aluminium hollow section, 36 holes
Spokes
2.0 mm, black
Tires
Schwalbe Citizen, 47-622, reflex
Brakes
Brakes
Magura HS11 rim brake
Brake Levers
Magura HS11
Cockpit
Stem
Promax MQ-570, angle adjustable, 31.8 mm
Handlebar
Trekking, steel, 600 mm
Grips
Herrmans Ergo 84B
Seat
Saddle
Selle Royal Rio
Seatpost
Kind Shock KSP-630, patent, suspension, 27.2 mm, 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
Raise RT6 Shimano Nexus 8-speed coaster brake HS11 belongs to the Kreidler Raise model. Kreidler released 15 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter bikes
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Commuter bikes
On a deeper look, we notice that the average weight of a Commuter bike is 13.77 kg (30.36 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Raise RT6 Shimano Nexus 8-speed coaster brake HS11 has a weight of 17.6 kg (38.8 lbs). In other words, this model is 27.81% heavier than the average Commuter bike.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Raise RT6 Shimano Nexus 8-speed coaster brake HS11 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Raise RT6 Shimano Nexus 8-speed coaster brake HS11 has Hydraulic Rim brakes. These brakes are pretty rare, and you will find them on very few bike models. In short, you can look for a bike with disk or hydraulic disk brakes.
