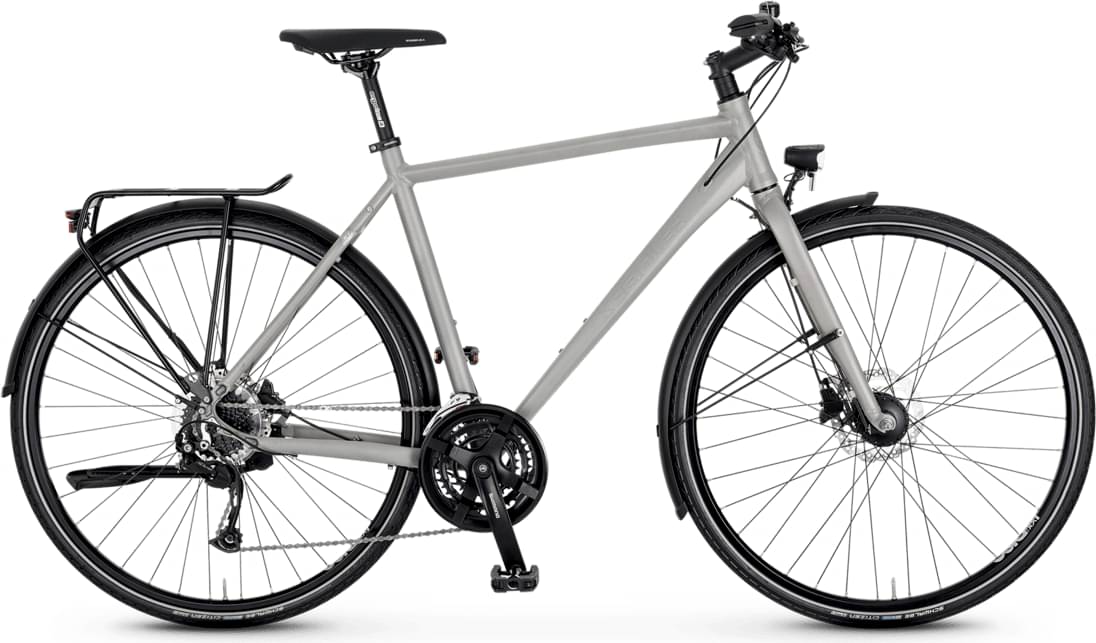

kreidler Raise RT7 Sport Shimano Alivio 24-speed Disc 2023
2023 Urban
Weight | 17.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Alivio -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, 28" Trekking
Suspension Fork
28" Aluminium,
Drivetrain
Rear Derailleur
Shimano FD-TY601, 3-speed
Shift Levers
Shimano Alivio RD-T4000, 8-speed
Cassette
Shimano Altus CS-HG31, 11-30 teeth
Crank
Shimano Alivio 24-speed 48/38/28 teeth
Bottom Bracket
Shimano TY-301, 170 mm, 48/38/28 teeth
Chain
KMC X8
Chain Guide
Shimano chain guard
Pedals
Marwi SP-811
Wheels
Front Hub
Shimano DH-3D37, hub dynamo, Centerlock, 36 holes
Rear Hub
Shimano FH-TX505, Centerlock, 36 holes
Rims
Schürmann YAK19 Disc Aluminium hollow section, 36 holes
Spokes
2.0 mm, black
Tires
Schwalbe Citizen, 37-622, reflex
Brakes
Brakes
JAK Y-2 (front 160 mm / rear 160 mm) disc brake
Brake Levers
JAK, 3-finger brake lever
Cockpit
Stem
Promax DA-250, Aluminium, 31.8 mm
Handlebar
Promax HB-3188, Aluminium, 640 mm
Grips
Westphal Grabsolute 447, with clamp
Seat
Saddle
Selle Royal Essenza
Seatpost
Humpert Ergotec Atar, patent, 27.2 mm, 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
Raise RT7 Sport Shimano Alivio 24-speed Disc is a Kreidler Raise model. There are 15 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Commuter bikes average weight
The average weight for Commuter bikes is 13.77 kg (30.36 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 17.6 kg (38.8 lbs), Kreidler bike is much heavier than average. To sum up, it’s 27.81% heavier than the average weight of Commuter bikes.
Raise RT7 Sport Shimano Alivio 24-speed Disc components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Raise RT7 Sport Shimano Alivio 24-speed Disc are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kreidler Raise RT7 Sport Shimano Alivio 24-speed Disc has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
