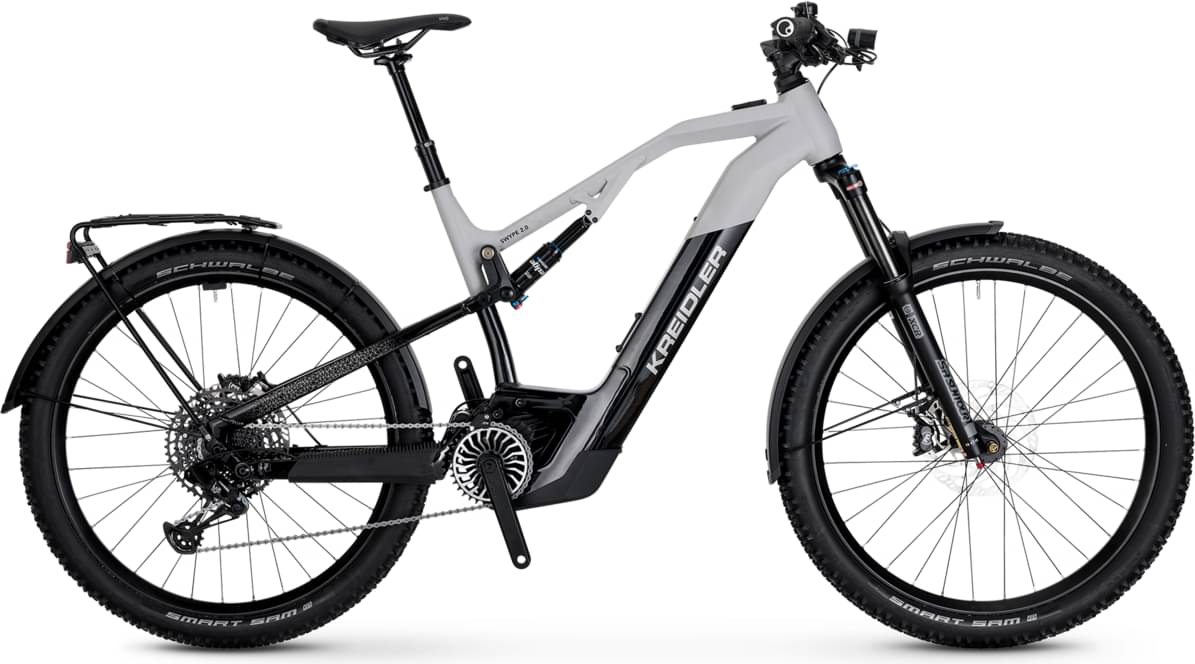

kreidler SWYPE 2.0 FS Equipped Sram SX Eagle 12-speed 625Wh 2023
2023 E-bike
Weight | 26.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Suntour XCR
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
fully integrated, Aluminium 6061, Boost 12 x 148 mm, Travel 140 mm
Suspension Fork
Suntour XCR34, Boost, 140 mm suspension travel with lockout function,
Rear Shock
Suntour Edge 185 x 55 mm, Trunnion
Drivetrain
Rear Derailleur
N/V
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210 Eagle, 12-speed, 11-50 teeth
Crank
SRAM SX Eagle 12-speed 34 teeth
Bottom Bracket
Miranda Aluminium, 165 mm, SRAM Eagle chain ring 34 teeth, Narrow Wide
Chain
SRAM Eagle
Chain Guide
chain guide
Pedals
Marwi SP-450 Flat Pedal, black
Wheels
Front Hub
Sonos, Boost, 15 x 110 mm, 32 holes, 6-holes
Rear Hub
Sonos, Boost, 12 x 148 mm, 32 holes, 6-holes
Rims
Schürmann Craft 35, 27.5", 32 holes
Spokes
2.0 mm, black
Tires
Schwalbe Smart Sam, 65-584
Brakes
Brakes
Magura MT Thirty 4 pistons (front 203 mm / rear 203 mm) disc brake
Brake Levers
Magura MT Thirty
Cockpit
Stem
Promax DA-230, 80 mm, 31.8 mm, with headlight holder
Handlebar
Humpert Ergotec Low Riser Bar, 740 mm, 31.8 mm, Level 6+
Grips
Ergon GA30, with clamp
Seat
Saddle
Selle Italia Model Y
Seatpost
Limotec A1, dropper with remaote, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 45cm | 48cm |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
SWYPE 2.0 FS Equipped Sram SX Eagle 12-speed 625Wh completes the Kreidler E Swype model. There are 10 e-bikes that carry this model name. You can easily view all of the Kreidler E Swype e-bikes models from 2023, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 26.5 kg (58.42 lbs), Kreidler e-bike is considerably heavier than average. To sum up, it’s 11.81% heavier than the average weight of Trail e-bikes.
SWYPE 2.0 FS Equipped Sram SX Eagle 12-speed 625Wh components
Fork
The SWYPE 2.0 FS Equipped Sram SX Eagle 12-speed 625Wh comes factory-installed with the Suntour XCR fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Suntour Edge 185 x 55 mm rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the SWYPE 2.0 FS Equipped Sram SX Eagle 12-speed 625Wh e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Kreidler SWYPE 2.0 FS Equipped Sram SX Eagle 12-speed 625Wh includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
