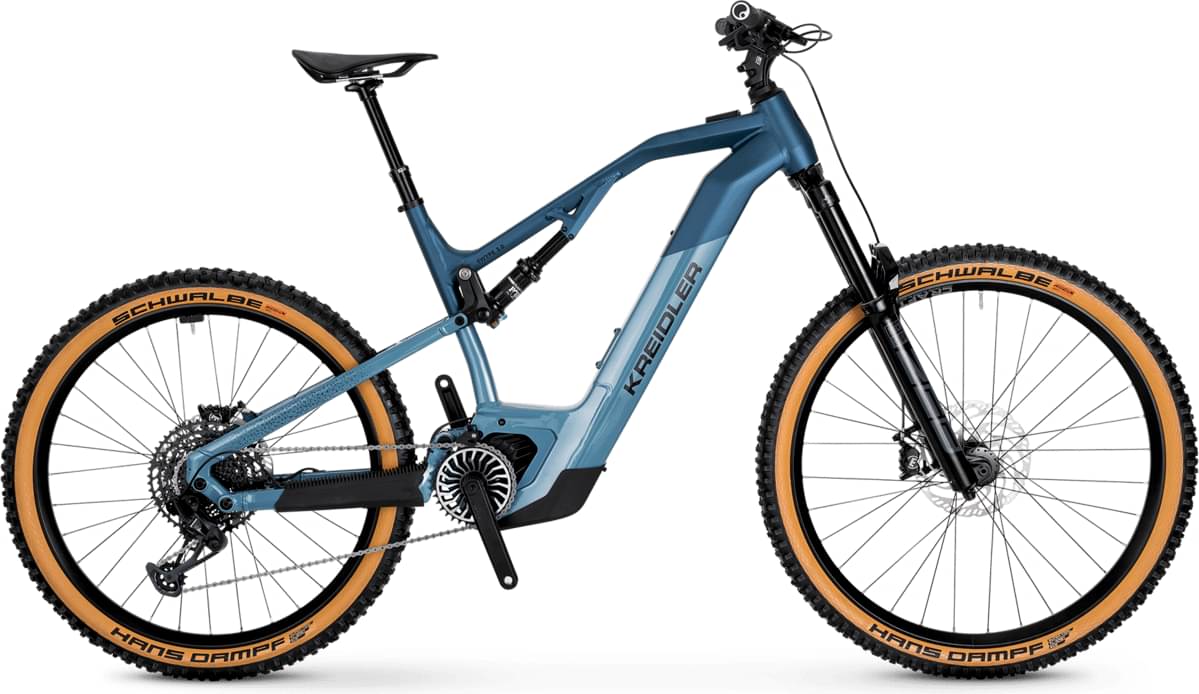

kreidler SWYPE 3.0 FS Sram GX 12-speed 750Wh 2023
2023 E-bike
Weight | 26.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
fully integrated, Aluminium 6061, Boost 12 x 148 mm, Travel 160 mm
Suspension Fork
Rock Shox ZEB, Boost, 160 mm suspension travel with lockout function,
Rear Shock
Marzocchi Bomber CR 205 x 65 mm, Trunnion
Drivetrain
Rear Derailleur
N/V
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM PG-1210 Eagle, 12-speed, 11-50 teeth
Crank
SRAM GX 12-speed 34 teeth
Bottom Bracket
Miranda Aluminium, 165 mm, FSA chain ring 34 teeth, Narrow Wide
Chain
KMC E12 EPT
Chain Guide
chain guide
Pedals
Marwi SP-102 Flat Pedal, Aluminium, black
Wheels
Front Hub
SRAM MTH700, 15 x 110 mm, 32 holes, 6-holes
Rear Hub
SRAM MTH700, 12 x 148 mm, 32 holes, 6-holes
Rims
Schürmann Craft 35, 29"front / 27.5" rear
Spokes
Niro 2.0 mm, black
Tires
Schwalbe Hans Dampf 60-622 (front), Hans Dampf 65-584 (rear), Classic Skin
Brakes
Brakes
Magura MT5 4 pistons (front 203 mm / rear 203 mm) disc brake
Brake Levers
Magura MT5
Cockpit
Stem
Humpert Ergotec Bass, 45 mm, 31.8 mm, Level 6+
Handlebar
Humpert Ergotec Low Riser Bar, 780 mm, 31.8 mm, Level 6+
Grips
Ergon GA20, with clamp
Seat
Saddle
Ergon SM10 e-MTB
Seatpost
Humpert Ergotec Atar, patent, 31.6 mm, 300 mm
Motor & Battery
Motor
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 45cm | 48cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
SWYPE 3.0 FS Sram GX 12-speed 750Wh completes the Kreidler E Swype model. Kreidler released 7 e-bikes variations of this model so far. You can easily view all of the Kreidler E Swype e-bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.3 kg (51.37 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Kreidler SWYPE 3.0 FS Sram GX 12-speed 750Wh it’s weighing 26.5 kg (58.42 lbs). At this weight, is considerably heavier than average. In other words, this model is 13.73% heavier than the average Enduro e-bike.
Overview of components
Fork
The SWYPE 3.0 FS Sram GX 12-speed 750Wh comes factory-installed with the RockShox ZEB fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Kreidler SWYPE 3.0 FS Sram GX 12-speed 750Wh e-bike has the Marzocchi Bomber CR 205 x 65 mm model installed, and has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Kreidler SWYPE 3.0 FS Sram GX 12-speed 750Wh 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kreidler SWYPE 3.0 FS Sram GX 12-speed 750Wh is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
