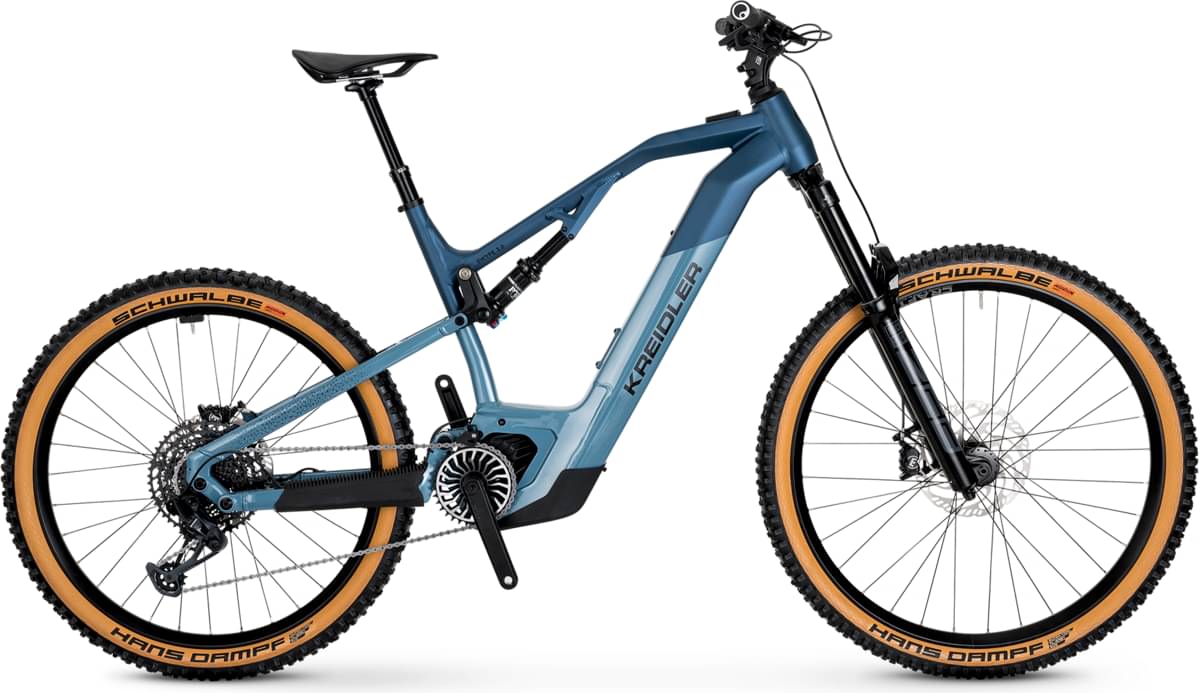

kreidler SWYPE 3.0 FS Sram GX Eagle 12-speed 750Wh 2023
2023 E-bike
Weight | 26.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
fully integrated, Aluminium 6061, Boost 12 x 148 mm, Travel 160 mm
Suspension Fork
Rock Shox ZEB, Boost, 160 mm suspension travel with lockout function,
Rear Shock
Marzocchi Bomber CR 205 x 65 mm, Trunnion
Drivetrain
Rear Derailleur
N/V
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM PG-1210 Eagle, 12-speed, 11-50 teeth
Crank
SRAM GX Eagle 12-speed 34 teeth
Bottom Bracket
Miranda Aluminium, 165 mm, SRAM Eagle chain ring 34 teeth, Narrow Wide
Chain
KMC E12 EPT
Chain Guide
chain guide
Pedals
Marwi SP-102 Flat Pedal, Aluminium, black
Wheels
Front Hub
SRAM MTH700, 15 x 110 mm, 32 holes, 6-holes
Rear Hub
SRAM MTH700, 12 x 148 mm, 32 holes, 6-holes
Rims
Schürmann Craft 35, 29"front / 27.5" rear
Spokes
Niro 2.0 mm, black
Tires
Schwalbe Hans Dampf 60-622 (front), Hans Dampf 65-584 (rear), Classic Skin
Brakes
Brakes
Magura MT5 4 pistons (front 203 mm / rear 203 mm) disc brake
Brake Levers
Magura MT5
Cockpit
Stem
Humpert Ergotec Bass, 45 mm, 31.8 mm, Level 6+
Handlebar
Humpert Ergotec Low Riser Bar, 780 mm, 31.8 mm, Level 6+
Grips
Ergon GA20, with clamp
Seat
Saddle
Ergon SM10 e-MTB
Seatpost
Limotec A1, dropper with remote, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 45cm | 48cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
About this model
SWYPE 3.0 FS Sram GX Eagle 12-speed 750Wh is part of the Kreidler E Swype model. Kreidler released 10 e-bikes variations of this model so far. Take a sneak peek at all Kreidler E Swype e-bikes models from 2023, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 26.5 kg (58.42 lbs), Kreidler e-bike is considerably heavier than average. In other words, this model is 13.15% heavier than the average Enduro e-bike.
SWYPE 3.0 FS Sram GX Eagle 12-speed 750Wh components
Fork
The fork installed on this bike is the RockShox ZEB model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the Marzocchi Bomber CR 205 x 65 mm model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the SWYPE 3.0 FS Sram GX Eagle 12-speed 750Wh e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
