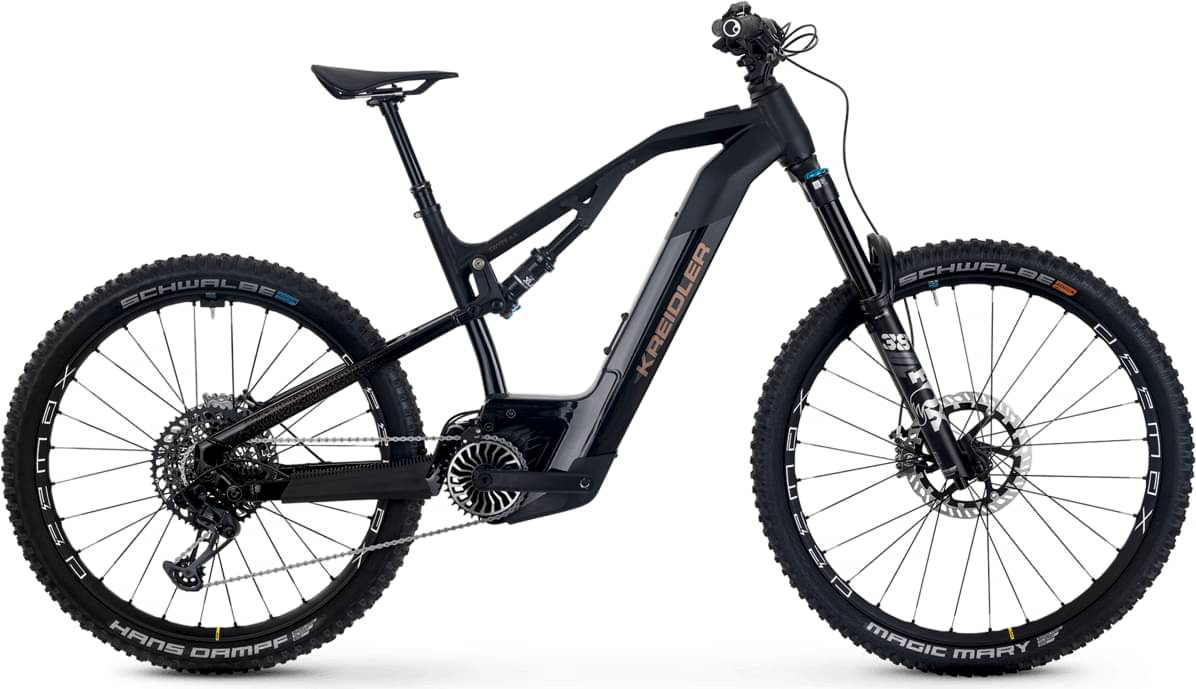

kreidler SWYPE 4.0 FS Sram XO 12-speed 750Wh 2023
2023 E-bike
Weight | 26.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset X0 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
fully integrated, Aluminium 6061, Boost 12 x 148 mm, Travel 160 mm
Suspension Fork
Fox 38 Performance 29 eOptimized, 160 mm suspension travel, 3 Position Micro Adjust,
Rear Shock
Marzocchi Bomber CR 205 x 65 mm, Trunnion
Drivetrain
Rear Derailleur
N/V
Shift Levers
SRAM XO Eagle, 12-speed
Cassette
SRAM XG-1275 Eagle, 12-speed, 10-52 teeth
Crank
SRAM XO 12-speed 34 teeth
Bottom Bracket
Miranda Aluminium, 165 mm, FSA chain ring 34 teeth, Narrow Wide
Chain
KMC E12 EPT
Chain Guide
chain guide
Pedals
Marwi SP-102 Flat Pedal, Aluminium, black
Wheels
Front Hub
DT Swiss H1900 Spline, 15 x 110 mm, 6-holes
Rear Hub
DT Swiss H1900 Spline, 12 x 148 mm, 6-holes
Rims
DT Swiss H1900 Spline, 29"front / 27.5" rear
Spokes
DT Swiss H1900 Spline
Tires
Schwalbe Magic Mary 62-622 (front), Hans Dampf 65-584 (rear)
Brakes
Brakes
Magura MT7 4 pistons (front 220 mm / rear 203 mm) disc brake
Brake Levers
Magura MT7
Cockpit
Stem
Humpert Ergotec Bass, 45 mm, 31.8 mm, Level 6+
Handlebar
Humpert Ergotec Low Riser Bar, 780 mm, 31.8 mm, Level 6+
Grips
Ergon GA20, with clamp
Seat
Saddle
Ergon SM10 e-MTB
Seatpost
Humpert Ergotec Atar, patent, 31.6 mm, 300 mm
Motor & Battery
Motor
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 45cm | 48cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
About this model
SWYPE 4.0 FS Sram XO 12-speed 750Wh completes the Kreidler E Swype model. There are 7 e-bikes that carry this model name. You can easily view all of the Kreidler E Swype e-bikes models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.3 kg (51.37 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Kreidler SWYPE 4.0 FS Sram XO 12-speed 750Wh it’s weighing 26.5 kg (58.42 lbs). At this weight, is considerably heavier than average. In conclusion, the average Enduro e-bike weighs 13.73% less than SWYPE 4.0 FS Sram XO 12-speed 750Wh.
SWYPE 4.0 FS Sram XO 12-speed 750Wh components
Fork
The SWYPE 4.0 FS Sram XO 12-speed 750Wh comes factory-installed with the Fox Performance Float 38 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Kreidler SWYPE 4.0 FS Sram XO 12-speed 750Wh e-bike has the Marzocchi Bomber CR 205 x 65 mm model installed, and has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the SWYPE 4.0 FS Sram XO 12-speed 750Wh model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Kreidler SWYPE 4.0 FS Sram XO 12-speed 750Wh has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
