Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 26" -
Groupset Altus, Tourney -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUMINIUM PERFORMANCE
Suspension Fork
KROSS
Rear Shock
NO
Drivetrain
Rear Derailleur
SHIMANO ALTUS M310
Front Derailleur
SHIMANO TOURNEY TY300
Shift Levers
SHIMANO EF41
Cassette
SHIMANO MF TZ500 14-28T
Crank
WHEEL TOP
Bottom Bracket
FP-B902
Chain
YBN S50
Pedals
FP-804
Wheels
Front Hub
GL-B10F-DS
Rear Hub
GL-B10R-DS
Rims
KROSS
Tires
WANDA/ 2.1 (XS- 26, S- 26, S- 27.5, M- 27.5, L- 27.5)
Brakes
Brakes
TARCZOWY MECHANICZNY
Brake Levers
SHIMANO EF41
Cockpit
Stem
ALUMINIUM/ 31,8/7° (XS (26")- 75MM, S (26")- 75MM, S (27,5")- 75MM, M (27,5")- 90MM, L (27,5")- 105MM)
Handlebar
ALUMINIUM 660 MM 31.8
Headset
FP-H863 O1-1/8"
Seat
Saddle
KROSS D5311
Seatpost
ALUMINIUM/ 27,2 (XS (26")- 300MM, S (26")- 300MM, S (27,5")- 300MM, M (27,5")- 350MM, L (27,5")- 350MM)
Motor & Battery
Remote
NO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.531 mm | 1.629 mm | 1.625 mm | 1.579 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 608 mm | 628 mm | 617 mm | 628 mm | 648 mm |
| Rake | 39 mm | 40 mm | 25 mm | 25 mm | 25 mm |
| Trail | 83 mm | 82 mm | 103 mm | 103 mm | 103 mm |
| Stack | 579 mm | 588 mm | 619 mm | 629 mm | 638 mm |
| Reach | 368 mm | 384 mm | 380 mm | 387 mm | 404 mm |
| Top Tube Length | 550 mm | 570 mm | 575 mm | 585 mm | 605 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 130 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1036 mm | 1056 mm | 1048 mm | 1059 mm | 1079 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 26" | 26" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 170 cm | 177 cm | 184 cm |
About this model

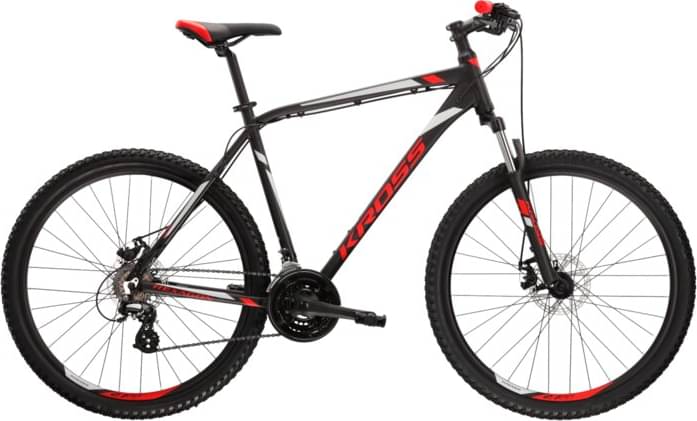

HEXAGON 3.0 belongs to the Kross Hexagon model. 66 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
HEXAGON 3.0 components
Wheels
The wheels on HEXAGON 3.0 are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 5 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
