Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork Suntour XCR 32 -
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUMINIUM LITE
Suspension Fork
SR SUNTOUR XCR 32 RL COIL
Rear Shock
NO
Drivetrain
Rear Derailleur
SHIMANO DEORE M5120
Front Derailleur
NO
Shift Levers
SHIMANO DEORE M4100
Cassette
SHIMANO DEORE M4100 11-46T
Crank
SHIMANO DEORE M5100
Bottom Bracket
SHIMANO BSA BB52
Chain
SHIMANO HG54
Pedals
FP-917N
Wheels
Front Hub
MT200
Rear Hub
MT200-B
Rims
KROSS
Tires
SCHWALBE SMART SAM 29x2.25
Brakes
Brakes
SRAM LEVEL
Brake Levers
SRAM LEVEL
Cockpit
Stem
ALUMINIUM/31,8/7° (S- 70MM, M- 70MM, L- 70MM, XL- 80MM, XXL- 80MM)
Handlebar
ALUMINIUM/31,8/(S- 700 MM, M- 720 MM, L- 720 MM, XL- 720 MM, XXL- 720 MM)
Headset
FP-H816 O1-1/8"
Seat
Saddle
SELLE ROYAL
Seatpost
ALUMINIUM/ (S- 27,2x350MM, M- 27,2x350MM, L- 27,2x350MM, XL- 27,2x400MM, XXL- 27,2x400MM)
Motor & Battery
Remote
NO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.492 mm | 1.455 mm | 1.422 mm | 1.392 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 647 mm | 687 mm | 712 mm | 737 mm | 758 mm |
| Rake | 38 mm | 51 mm | 51 mm | 50 mm | 47 mm |
| Trail | 103 mm | 89 mm | 89 mm | 90 mm | 93 mm |
| Stack | 609 mm | 619 mm | 633 mm | 647 mm | 661 mm |
| Reach | 393 mm | 415 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 568 mm | 592 mm | 616 mm | 640 mm | 664 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1085 mm | 1125 mm | 1150 mm | 1175 mm | 1197 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

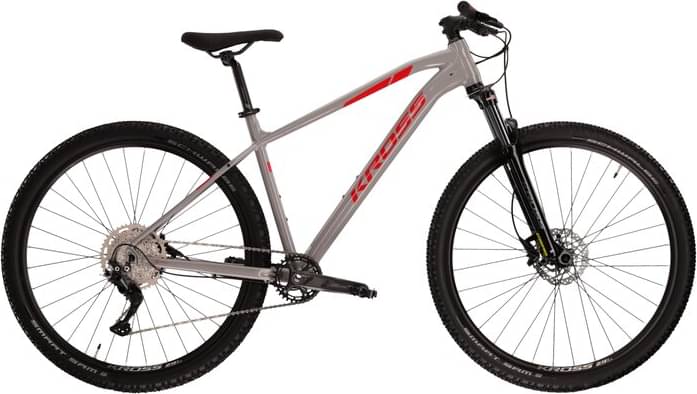

LEVEL 4.0 completes the Kross Level model. Kross launched 92 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
LEVEL 4.0 components
Fork
Kross LEVEL 4.0 2022 bike is equipped with the Suntour XCR 32 fork, and has mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on LEVEL 4.0 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
