Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork Suntour XCM -
Groupset Deore, FSA -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO BT-E8010 504WH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUMINIUM LITE
Suspension Fork
SR SUNTOUR XCM 32 RL
Rear Shock
NO
Drivetrain
Rear Derailleur
SHIMANO DEORE M6000
Front Derailleur
NO
Shift Levers
SHIMANO DEORE M6000
Cassette
SHIMANO DEORE M4100 11-42T
Crank
FSA-CK751
Bottom Bracket
NO
Chain
SHIMANO E6090
Pedals
NO
Wheels
Front Hub
SHIMANO MT400 15x100
Rear Hub
SHIMANO TX505
Rims
KROSS
Tires
WTB RANGER 29x2,25 COMP
Brakes
Brakes
SHIMANO MT200
Brake Levers
SHIMANO MT200
Cockpit
Stem
ALUMINIUM 60MM/31,8
Handlebar
ALUMINIUM 740 MM 31.8
Headset
FP-H816 O1-1/8"
Seat
Saddle
KROSS
Seatpost
SP-C207 27,2x350
Motor & Battery
Motor
SHIMANO E7000
Battery
SHIMANO BT-E8010 504WH
Remote
SHIMANO SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.553 mm | 1.526 mm | 1.496 mm | 1.472 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 661 mm | 683 mm | 700 | 716 mm |
| Rake | 47 mm | 49 mm | 49 mm | 50 mm |
| Trail | 93 mm | 91 mm | 91 mm | 90 mm |
| Stack | 612 mm | 624 mm | 633 mm | 642 mm |
| Reach | 394 mm | 409 mm | 423 mm | 436 mm |
| Top Tube Length | 583 mm | 600 mm | 617 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 453 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1108 mm | 1127 mm | 1144 mm | 1161 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

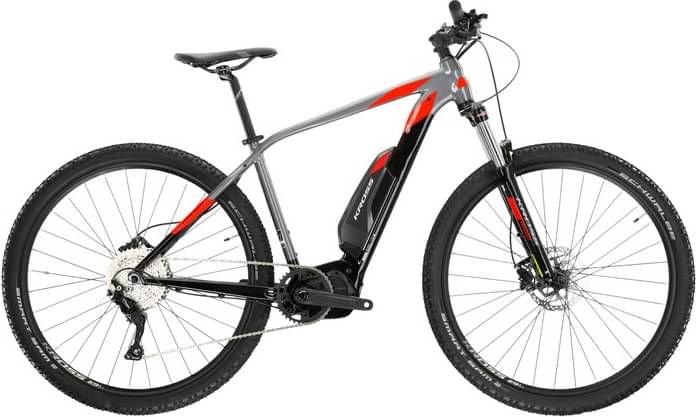

About this model
LEVEL BOOST 1.0 completes the Kross E Level model. Kross released 15 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
LEVEL BOOST 1.0 components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The LEVEL BOOST 1.0 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Kross LEVEL BOOST 1.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
