Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Fork Suntour AION -
Groupset Deore, FSA -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery SIMPLO 630 WH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUMINIUM LITE
Suspension Fork
SR SUNTOUR AION 35 LOR
Rear Shock
ROCK SHOX DELUXE SELECT R
Drivetrain
Rear Derailleur
SHIMANO DEORE M6000
Front Derailleur
NO
Shift Levers
SHIMANO DEORE M6000
Cassette
SHIMANO DEORE M4100 11-42T
Crank
FSA-CK751
Bottom Bracket
NO
Chain
SHIMANO E6090
Pedals
NO
Wheels
Front Hub
SHIMANO MT400 15x110
Rear Hub
SHIMANO MT400 12x148
Rims
WTB SCRAPER I40
Tires
WTB TRAIL BOSS 27,5x2.6 TCS
Brakes
Brakes
SHIMANO MT500
Brake Levers
SHIMANO MT501
Cockpit
Stem
ALUMINIUM 55MM/35/0°
Handlebar
ALUMINIUM 35 (S - 760mm, M, L, XL - 780mm)
Headset
FP-H856B2;1-1/8"-1.5"
Seat
Saddle
WTB VOLT SPORT
Seatpost
TRANZX JD-YSP23J 412x125; 30,9
Motor & Battery
Motor
SHIMANO E8000
Battery
SIMPLO 630 WH
Remote
SHIMANO SC-E8000
Charger
36V / 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.357 mm | 1.339 mm | 1.27 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 712 mm | 732 mm | 760 mm | 785 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 593 mm | 593 mm | 612 mm | 612 mm |
| Reach | 417 mm | 437 mm | 457 mm | 482 mm |
| Top Tube Length | 576 mm | 596 mm | 621 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1155 mm | 1175 mm | 1203 mm | 1228 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

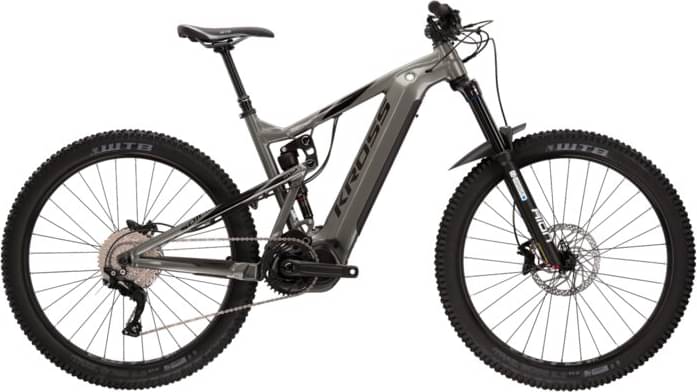

SOIL BOOST 1.0 630 is part of the Kross E Soil model. Kross released 14 e-bikes variations of this model so far. Take a sneak peek at all Kross E Soil e-bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
SOIL BOOST 1.0 630 components
Fork
This e-bike has the Suntour AION fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The SOIL BOOST 1.0 630 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Kross SOIL BOOST 1.0 630 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
