Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor hub-drive -
Battery 43.2V/11.6Ah/522WH -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUMINIUM PERFORMANCE
Suspension Fork
SR SUNTOUR NEX
Rear Shock
NO
Drivetrain
Rear Derailleur
SHIMANO ALTUS M310
Front Derailleur
NO
Shift Levers
SHIMANO M315
Cassette
SHIMANO HG41 11-32T
Crank
TRUCKRUN M1
Bottom Bracket
TRUCKRUN
Chain
KMC X8 EPT
Pedals
FP-803
Wheels
Front Hub
MODUS JA159F
Rear Hub
MODUS JA259R
Rims
ALUMINIUM
Tires
KENDA K1088 40-622
Brakes
Brakes
Front: TEKTRO M275, Rear: TEKTRO M275
Brake Levers
TEKTRO M275
Cockpit
Stem
ALUMINIUM 105/25,4 REG
Handlebar
STEEL 620MM
Headset
FP-868
Seat
Saddle
VL-6263A
Seatpost
ALUMINIUM 30,9x350
Motor & Battery
Motor
TRUCKRUN M05
Battery
43.2V/11.6Ah/522WH
Charger
43,2V / 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.61 mm |
| Front Center | 690 mm | 690 mm |
| Rake | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm |
| Stack | 657 mm | 657 mm |
| Reach | 408 mm | 408 mm |
| Top Tube Length | 630 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 175 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1150 mm | 1150 mm |
| Bottom Bracket Drop | 50 mm | 50 mm |
| Wheels | 700 | 700 |
About this model

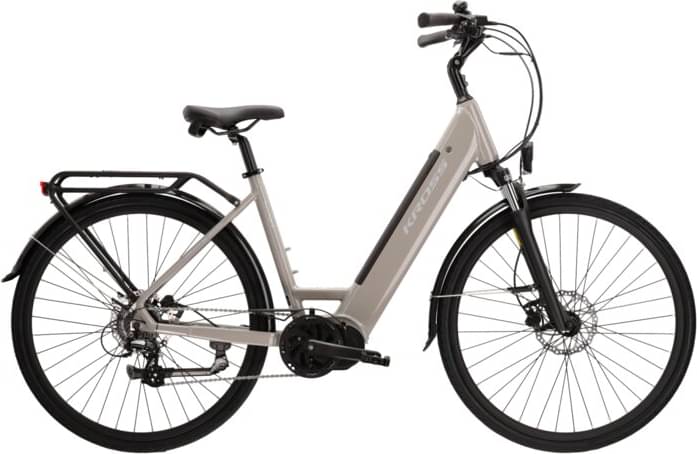

TRANS HYBRID LS 2.0 561 completes the Kross E Trans model. Kross launched 41 e-bikes of this model so far. You can easily view all of the Kross E Trans e-bikes models from 2022, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the TRANS HYBRID LS 2.0 561 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The TRANS HYBRID LS 2.0 561 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
