Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" Alloy 6061 MTB / M-1110
Suspension Fork
Suntour XCE28 coil 29" 80mm
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano EF505-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
Shimano M315 36-22T
Chain
KMC Z8.3
Pedals
KTM Line MTB BF
Wheels
Rims
KTM Line - Shimano HB-TX505 CL 32H 100 QR / KTM 28" Sport 32H; 622x20 / Pillar 2.0 INOX, silver
Brakes
Brakes
Shimano EF505 2-Piston
Cockpit
Stem
KTM Line 7°
Handlebar
KTM Line rizer12
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.47 mm | 1.45 mm | 1.43 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 657 mm | 678 mm | 700 | 721 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 602 mm | 611 mm | 626 mm | 639 mm |
| Reach | 398 mm | 416 mm | 432 mm | 448 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1085 mm | 1106 mm | 1128 mm | 1149 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 759 mm | 766 mm | 796 mm | 828 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

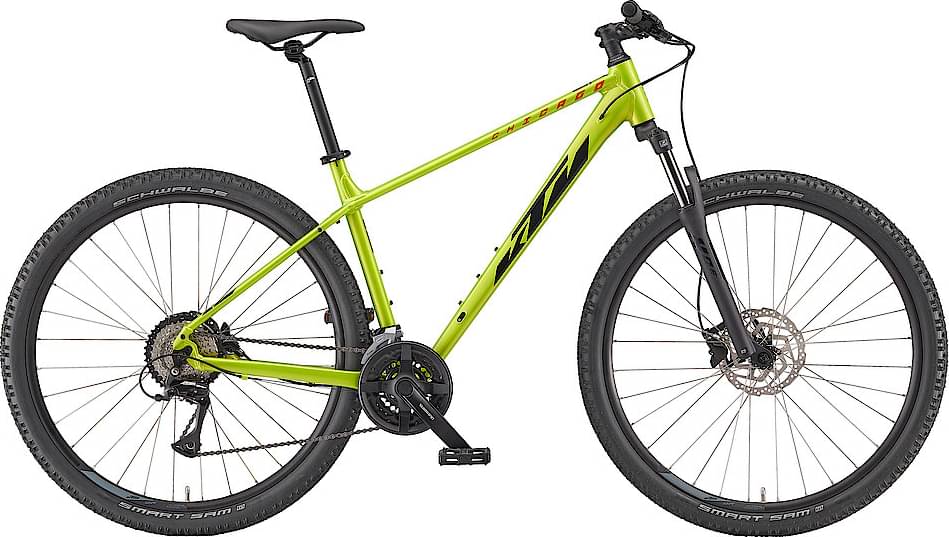

CHICAGO 292 completes the Ktm Chicago model. KTM launched 19 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 15.4 kg (33.95 lbs), the CHICAGO 292 model is much heavier than average. In conclusion, the average Crosscountry bike weighs 24.19% less than CHICAGO 292.
Overview of components
Fork
The fork installed on this bike is the Suntour XCE model. The travel on this model is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The CHICAGO 292 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
