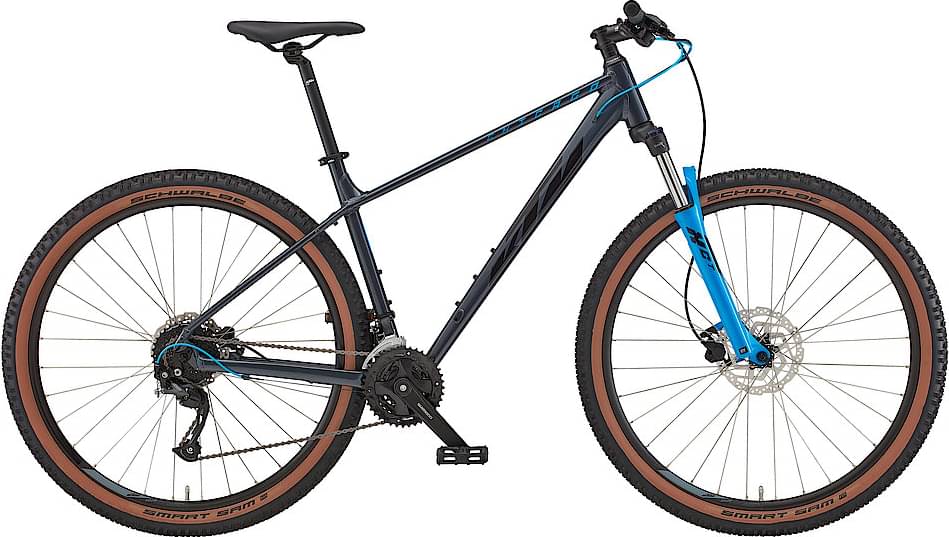

KTM CHICAGO DISC 291 2022
2022 Mountain
Estimate price |
966$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" Alloy 6061 MTB M1110
Suspension Fork
Suntour SF19-XCT30 HLO DS 100
Drivetrain
Rear Derailleur
Shimano Altus M2000-SGS shadow
Front Derailleur
Shimano Altus M2000
Shift Levers
Shimano Altus M2010
Cassette
Shimano Alivio HG200-9 / 11-34T
Crank
Shimano MT101-2 / 36-22T
Chain
KMC Z9
Wheels
Rims
KTM Line - Shimano Tourney HB-TX505 CL 32H 100 QR / KTM 28" Sport 32H / Pillar 2.0 INOX silver
Brakes
Brakes
Tektro HD-T275
Disk Rotors
Shimano Altus RT10 CL 180 / Altus RT10 CL 160
Cockpit
Stem
KTM LINE 7°
Handlebar
KTM LINE Riser 12 720-740mm
Headset
RITCHEY Zero Logic PRESS FIT 1-1/8"
Seat
Saddle
KTM LINE SPORT
Seatpost
KTM LINE 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.47 mm | 1.45 mm | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 657 mm | 678 mm | 700 | 721 mm | 738 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm | 96 mm |
| Stack | 602 mm | 611 mm | 626 mm | 639 mm | 658 mm |
| Reach | 398 mm | 416 mm | 432 mm | 448 mm | 457 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1085 mm | 1106 mm | 1128 mm | 1149 mm | 1166 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 759 mm | 766 mm | 796 mm | 828 mm | 857 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
CHICAGO DISC 291 completes the Ktm Chicago model. KTM released 19 bikes variations of this model so far. You can easily view all of the Ktm Chicago bikes models from 2022, here.
Model range prices
KTM CHICAGO 292 2022 is the most affordable bike of this model and has a price of 848$. On the other hand, KTM CHICAGO STREET 27 2022, is the most expensive and costs 933$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 901$. In conclusion, this bike price is 111.43% smaller than the price of the average Crosscountry bike.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM CHICAGO DISC 291 it’s weighing 15.1 kg (33.29 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 21.77% less than CHICAGO DISC 291.
CHICAGO DISC 291 components
Fork
The Suntour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The CHICAGO DISC 291 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM CHICAGO DISC 291 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
