Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5" Alloy 6061 MTB STREET / M-2080
Suspension Fork
Suntour NVX30 coil 29" 100mm
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano EF505-8 display
Cassette
Shimano HG200-8 / 12-32
Crank
Shimano FC-TY301 / 42-34-24T
Chain
KMC Z8.3
Pedals
KTM Line MTB BF
Wheels
Rims
KTM Line - Shimano DH-3D37 CL 32H 100 QR / KTM 27.5" Sport 32H; 584x20 / Pillar 2.0 INOX, silver
Brakes
Brakes
Shimano EF505 2-Piston
Cockpit
Stem
KTM Line 15°
Handlebar
KTM Line rizer12
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.32 mm | 1.3 mm | 1.3 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 666 mm | 687 mm | 709 mm | 731 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 552 mm | 566 mm | 579 mm | 598 mm |
| Reach | 413 mm | 429 mm | 445 mm | 460 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1094 mm | 1115 mm | 1137 mm | 1159 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 714 mm | 744 mm | 774 mm | 808 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

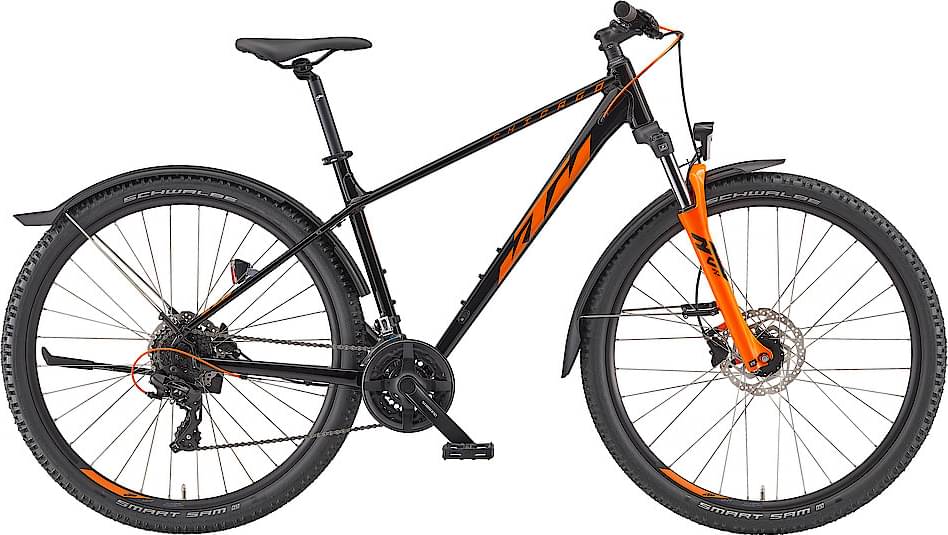

CHICAGO STREET 27 is part of the Ktm Chicago model. 19 bikes variations carry this model name so far. Take a sneak peek at all Ktm Chicago bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, CHICAGO STREET 27 has a weight of 16.5 kg (36.38 lbs). To sum up, it’s 33.06% heavier than the average weight of Crosscountry bikes.
CHICAGO STREET 27 components
Fork
The fork installed on this bike is the Suntour NVX model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the CHICAGO STREET 27 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
