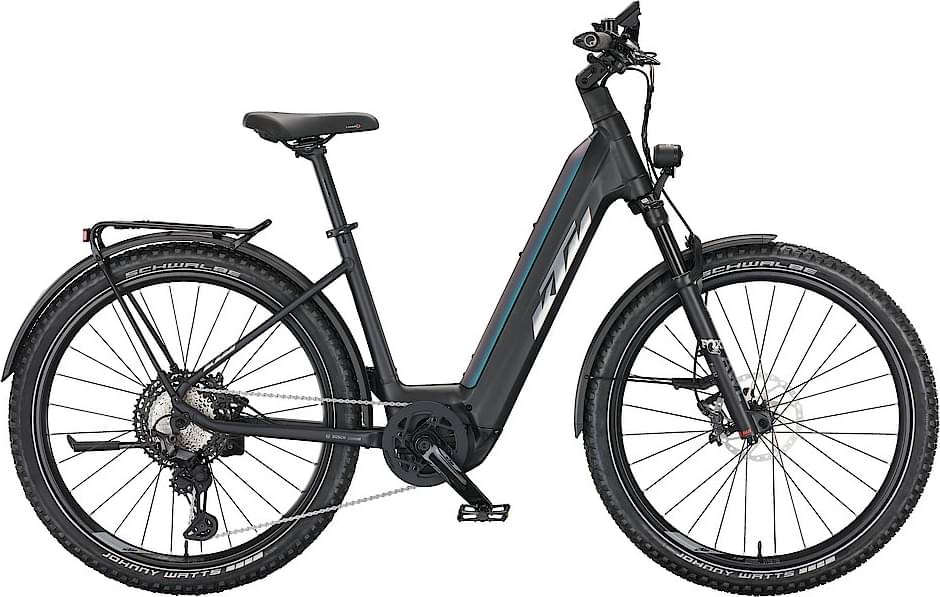

KTM MACINA AERA 771 LFC 2022
2022 E-bike
Estimate price |
6,078$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox AWL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
FOX 34 Float AWL 27.5" e-bike 100mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG600-11 / 11-50
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Wheels
Rims
KTM Line
Brakes
Brakes
Shimano Deore XT T8100 / M8120 4-Piston
Disk Rotors
Shimano RT64 CL 180 / EM600 CL 180
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Team rizer15 680mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Team 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.76 mm | 1.77 mm | 1.76 mm | 1.69 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 659 mm | 653 mm | 654 mm | 669 mm | 689 mm |
| Rake | 32 mm | 33 mm | 36 mm | 35 mm | 34 mm |
| Trail | 123 mm | 115 mm | 105 mm | 106 mm | 107 mm |
| Stack | 629 mm | 635 mm | 648 mm | 663 mm | 668 mm |
| Reach | 359 mm | 361 mm | 366 mm | 376 mm | 395 mm |
| Top Tube Length | 581 mm | 586 mm | 596 mm | 611 mm | 631 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 66 ° | 67 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 165 mm | 165 mm | 174 mm | 190 mm | 195 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1137 mm | 1131 mm | 1132 mm | 1147 mm | 1167 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
MACINA AERA 771 LFC completes the Ktm E Macina Aera model. KTM released 16 e-bikes variations of this model so far. Take a sneak peek at all Ktm E Macina Aera e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the KTM MACINA AERA 571 LFC 2022 has a starting price of 3928$. KTM MACINA AERA 771 LFC 2022 on the other hand is the most expensive at 5626$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When KTM released this model in 2022, its price was 5626$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 129.35% more expensive.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 27.4 kg (60.41 lbs), the MACINA AERA 771 LFC model is much heavier than average. In conclusion, the average Crosscountry e-bike weighs 18.05% less than MACINA AERA 771 LFC.
MACINA AERA 771 LFC components
Fork
The fork installed on this bike is the Fox AWL model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, KTM MACINA AERA 771 LFC 2022, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA AERA 771 LFC has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
KTM MACINA AERA 771 LFC e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
