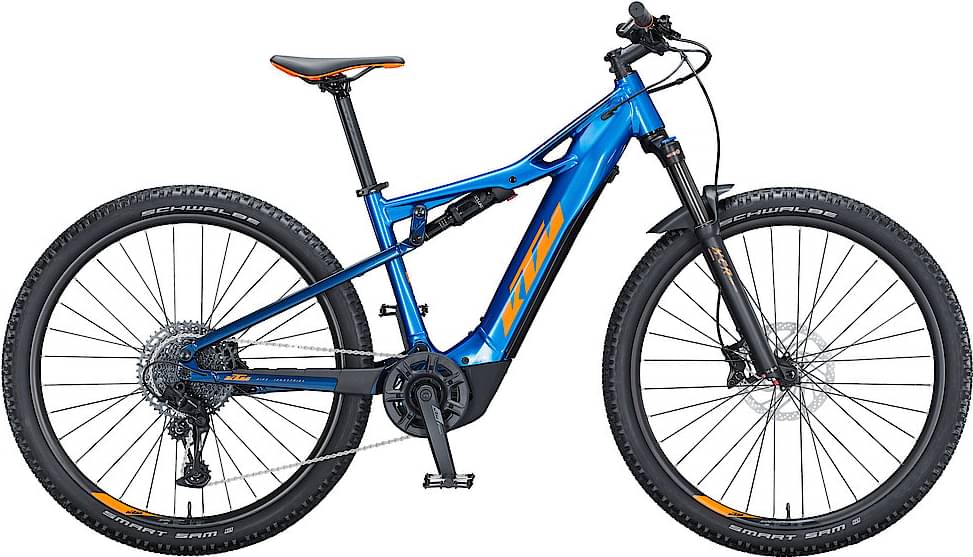

KTM MACINA CHACANA 294 2021
2021 E-bike
Estimate price |
4,361$
Weight | 24.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork SunTour XCR 34
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 130mm; PT625 Bosch Gen.4 / M-0186
Suspension Fork
Suntour XCR 34 coil 29" LOR 130mm 15x110 taper
Rear Shock
RockShox Deluxe Select 230x57.5
Drivetrain
Shift Levers
SRAM SX Eagle eClick 12
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT401 / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 203 / 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 720mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.42 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 718 mm | 738 mm | 769 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 625 mm | 630 mm | 641 mm |
| Reach | 406 mm | 425 mm | 452 mm |
| Top Tube Length | 581 mm | 601 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1187 mm | 1208 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 781 mm | 784 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA CHACANA 294 is part of the Ktm E Macina Chacana model. There are 18 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
KTM MACINA CHACANA 294 2021 is the most economical model, with a starting price of 3981$. KTM MACINA CHACANA 291 2021 on the other hand costs 5786$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When KTM released this model in 2021, its price was 3981$. Comparing this to the average Trail e-bike price, we see that the price is 18.31% higher.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 24.7 kg (54.45 lbs), the MACINA CHACANA 294 model is slightly heavier than average. In other words, this model is 4.22% heavier than the average Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select 230×57.5, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on MACINA CHACANA 294 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
KTM MACINA CHACANA 294 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
