Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh SMART SYSTEM hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 125mm UDH; PT750 Bosch Gen.4 / M-2286
Suspension Fork
Suntour XCR 34 Air 29" LOR 130mm 15x110 taper
Rear Shock
RockShox Deluxe Select 230x57.5
Drivetrain
Rear Derailleur
Shimano Deore M5120-11/10 SGS shadow+
Shift Levers
Shimano Deore M4100-10
Cassette
Shimano Deore M4100-10 / 11-46
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT401 / MT420 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP II Trail35 rizer15 760mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP II 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.39 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 717 mm | 742 mm | 769 mm |
| Rake | 53 mm | 51 mm | 49 mm |
| Trail | 101 mm | 104 mm | 106 mm |
| Stack | 617 mm | 626 mm | 636 mm |
| Reach | 406 mm | 431 mm | 456 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 797 mm | 799 mm | 803 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

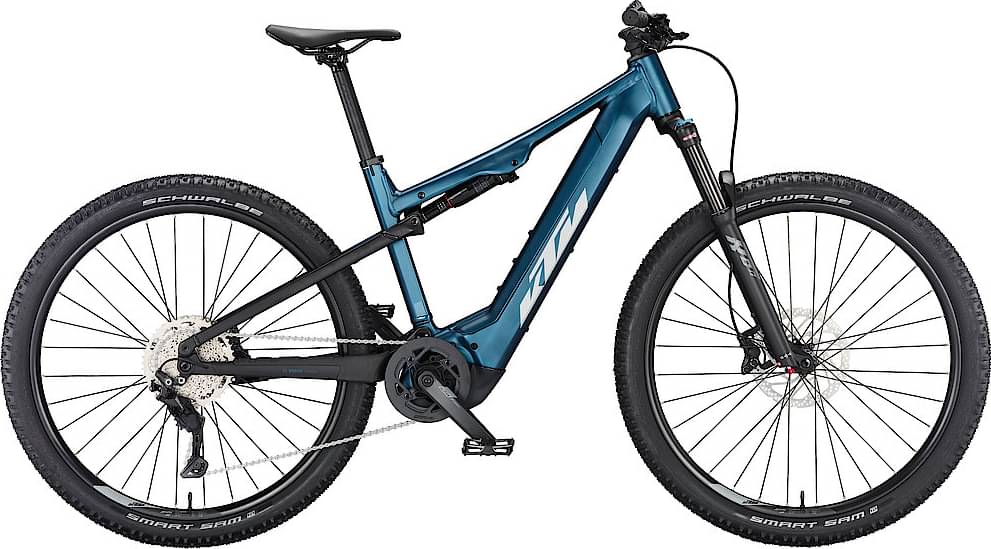

About this model
MACINA CHACANA 591 belongs to the Ktm E Macina Chacana model. KTM launched 18 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 24.9 kg (54.9 lbs), KTM e-bike is a bit heavier than average. In conclusion, the average Trail e-bike weighs 5.06% less than MACINA CHACANA 591.
MACINA CHACANA 591 components
Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The MACINA CHACANA 591 has a rear shock with a travel of 125mm. The model RockShox Deluxe Select 230×57.5 is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, KTM MACINA CHACANA 591 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CHACANA 591 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
KTM MACINA CHACANA 591 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
