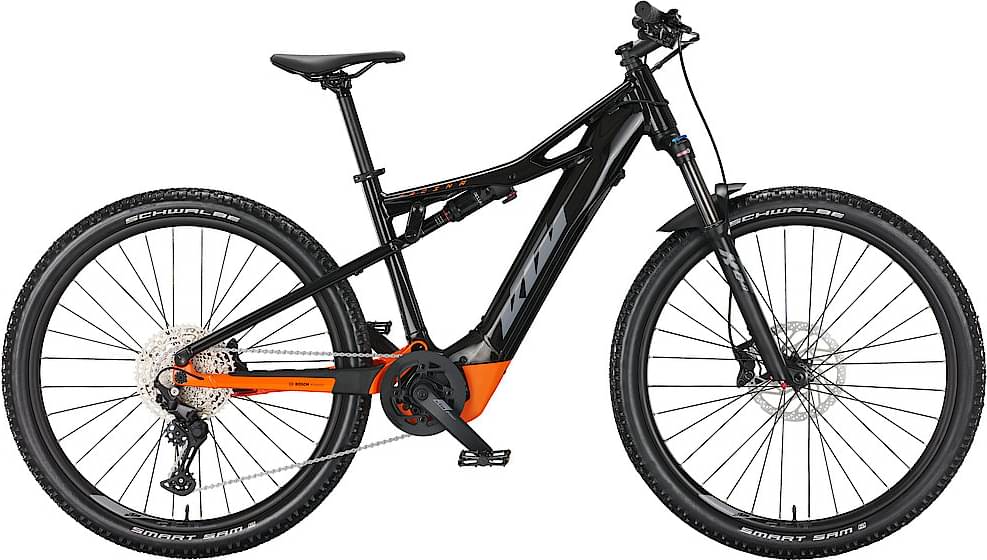

KTM MACINA CHACANA 591 LTD 2022
2022 E-bike
Estimate price |
5,045$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 125mm; PT625 Bosch Gen.4 / M-0186
Suspension Fork
Suntour XCR 34 coil 29" LOR 130mm 15x110 taper
Rear Shock
RockShox Deluxe Select 230x57.5
Drivetrain
Rear Derailleur
Shimano Deore M5100-11 SGS shadow+
Shift Levers
Shimano Deore M5100-11
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M750 / E730 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 203 / 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 720mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.42 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 718 mm | 738 mm | 769 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 625 mm | 630 mm | 641 mm |
| Reach | 406 mm | 425 mm | 452 mm |
| Top Tube Length | 581 mm | 601 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1187 mm | 1208 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 781 mm | 784 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA CHACANA 591 LTD belongs to the Ktm E Macina Chacana model. There are 18 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Chacana e-bikes models from 2022, here.
Model range prices
KTM MACINA CHACANA 591 LTD 2022 is the most economical model, with a starting price of 4671$. KTM MACINA CHACANA 791 2022 on the other hand costs 6476$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 4671$. Comparing this to the average Trail e-bike price, we see that the price is 38.81% more expensive.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
MACINA CHACANA 591 LTD weighs 24.6 kg (54.23 lbs) and is slightly heavier than the average. In other words, this model is 3.8% heavier than the average Trail e-bike.
MACINA CHACANA 591 LTD components
Fork
This e-bike has the Suntour XCR 34 fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select 230×57.5, with a travel distance of 125mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on MACINA CHACANA 591 LTD are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CHACANA 591 LTD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
