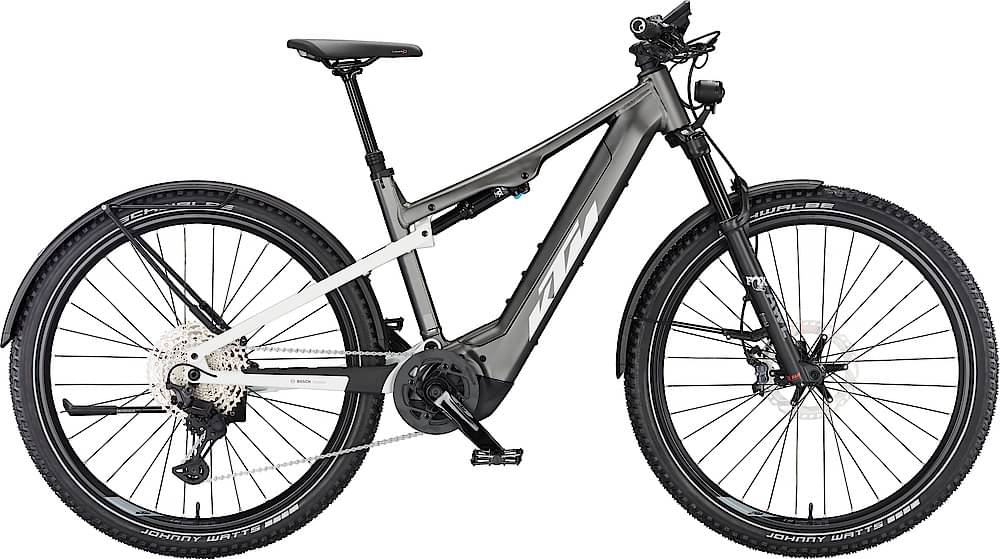

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Fox AWL
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 125mm UDH; PT750 Bosch Gen.4 / M-2286
Suspension Fork
FOX 34 Float AWL 29" e-bike 130mm 15x110
Rear Shock
FOX Float DPS Performance 230x57.5
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano Deore XT T8100 / M8120 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP II Trail35 rizer15 760mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin Athletic
Seatpost
KTM COMP II dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.39 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 717 mm | 742 mm | 769 mm |
| Rake | 53 mm | 51 mm | 49 mm |
| Trail | 101 mm | 104 mm | 106 mm |
| Stack | 617 mm | 626 mm | 636 mm |
| Reach | 406 mm | 431 mm | 456 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 797 mm | 799 mm | 803 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA CHACANA LFC completes the Ktm E Macina Chacana model. 18 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Chacana e-bikes models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM MACINA CHACANA LFC it’s weighing 28.7 kg (63.27 lbs). At this weight, is much heavier than average. In conclusion, the average Trail e-bike weighs 21.1% less than MACINA CHACANA LFC.
MACINA CHACANA LFC components
Fork
The fork installed on this bike is the Fox AWL model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX Float DPS Performance 230×57.5, with a travel distance of 125mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the MACINA CHACANA LFC model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA CHACANA LFC is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The KTM model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
