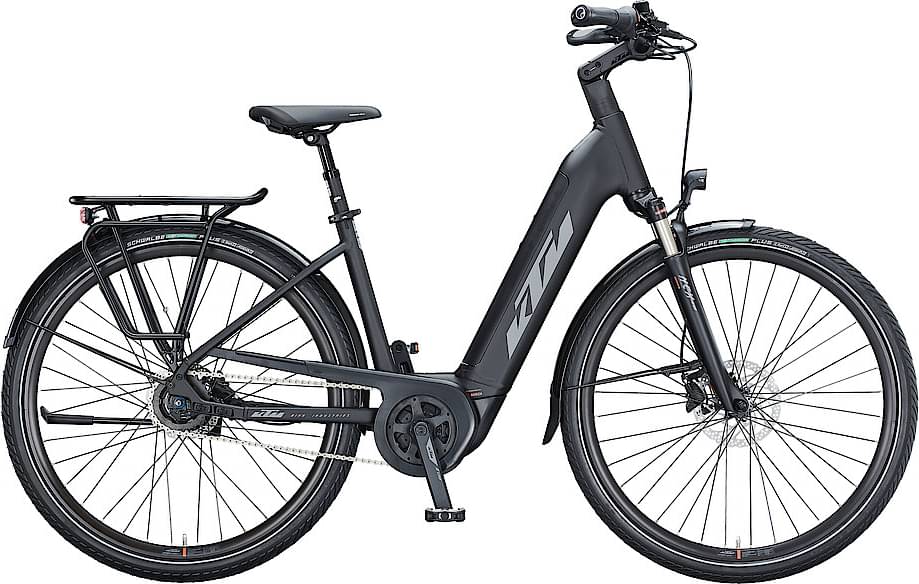

KTM Macina City A510 RT 2021
2021 E-bike
Estimate price |
3,780$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City US Disc Alloy6061; PT625Wh Bosch Gen.3 / T-1180
Suspension Fork
Suntour NCX-D coil LO 63mm
Drivetrain
Shift Levers
Shimano Nexus 5 Revoshifter
Cassette
ESJOT 30T
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ambrosio Sport Disc 36H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line Noirette Plus 660mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.64 mm | 1.66 mm | 1.65 mm |
| Front Center | 630 mm | 634 mm | 644 mm | 660 mm |
| Rake | 36 mm | 42 mm | 41 mm | 41 mm |
| Trail | 95 mm | 82 mm | 83 mm | 83 mm |
| Stack | 618 mm | 620 mm | 634 mm | 649 mm |
| Reach | 368 mm | 377 mm | 383 mm | 393 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 611 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1093 mm | 1097 mm | 1107 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Macina City A510 RT belongs to the Ktm E Macina City model. 20 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina City e-bikes models from 2021, here.
Model range prices
KTM Macina City A510 2021 is the most affordable e-bike of this model and has a price of 3450$. On the other hand, KTM MACINA CITY 5 ABS 2021, is the most expensive and costs 4777$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2021 and its price was 3450$. If we compare this with the average Commuter e-bike cost we notice that the price is 34.29% higher.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
KTM Macina City A510 RT it’s weighing 26.8 kg (59.08 lbs). At this weight, is a bit heavier than average. In short, the average Commuter e-bike weight is 6.35% lower than this one.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Macina City A510 RT are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Macina City A510 RT comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
KTM Macina City A510 RT e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
