Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTUBE 625Wh SMART SYSTEM hor. -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City US Alloy6061; PT625Wh Bosch Gen.3 / T-3180
Suspension Fork
Suntour NCX32-D coil LO 63mm
Drivetrain
Shift Levers
Shimano Nexus 5 Revoshifter
Cassette
Esjot 30T
Crank
KTM E-LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Chain Guide
KTM type 6 for Bosch Gen.3
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ambrosio Sport 25 700C 36H 622x25C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM adjust. 0-60° ICR
Handlebar
KTM Line Noirette Plus 660mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 SMART SYSTEM - 25km/h / 75Nm
Battery
Bosch PowerTUBE 625Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.64 mm | 1.66 mm | 1.65 mm |
| Front Center | 630 mm | 634 mm | 644 mm | 660 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 86 mm | 82 mm | 83 mm | 83 mm |
| Stack | 618 mm | 620 mm | 634 mm | 649 mm |
| Reach | 368 mm | 377 mm | 383 mm | 393 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 611 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1093 mm | 1097 mm | 1107 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

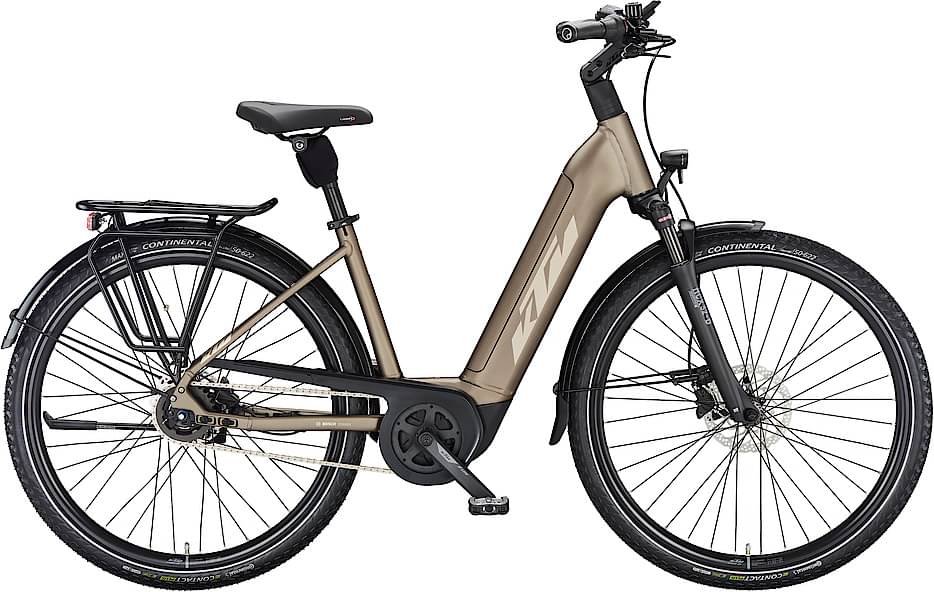

About this model
MACINA CITY P610 RT belongs to the Ktm E Macina City model. There are 20 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
MACINA CITY P610 RT weighs 28.6 kg (63.05 lbs) and is considerably heavier than the average. In short, the average Commuter e-bike weight is 13.49% lower than this one.
MACINA CITY P610 RT components
Fork
The Suntour is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the MACINA CITY P610 RT model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA CITY P610 RT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
MACINA CITY P610 RT comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
