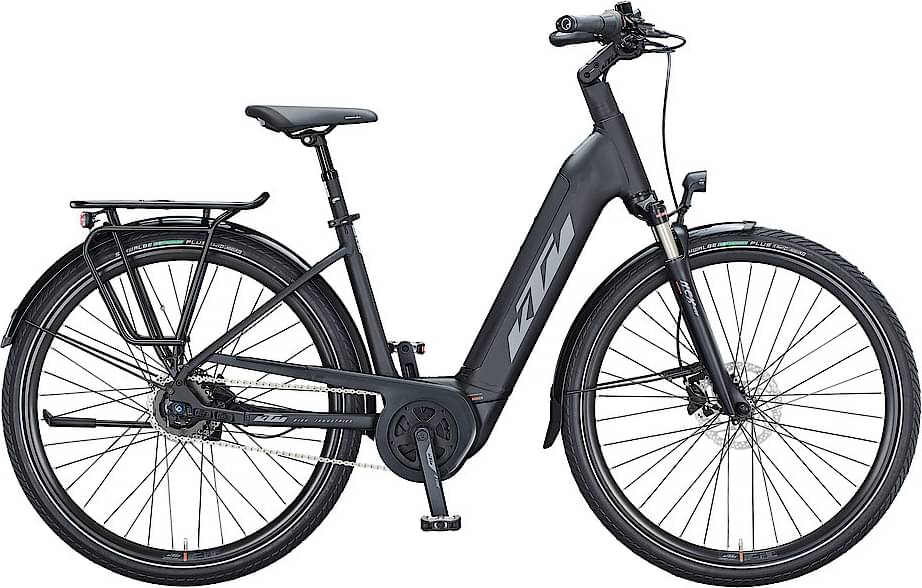

KTM MACINA CITY XL RT 2021
2021 E-bike
Estimate price |
4,529$
Weight | 28.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City US Disc Alloy6061; PT625Wh Bosch Gen.4 / T-0750
Suspension Fork
Suntour NCX-D coil LO 63mm (HD)
Drivetrain
Shift Levers
Shimano Nexus 5 Revoshifter
Cassette
ESJOT 30T
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ryde Andra29 36H 622x29C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT400 2-Piston
Disk Rotors
Shimano RT30 CL 180 / 160
Cockpit
Stem
Ergotec Swell RE70 adjust.
Handlebar
Ergotec Lady Town GH16 630mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Viaggio City
Seatpost
bySchulz G2.ST suspension 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 75Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.64 mm | 1.66 mm | 1.64 mm |
| Front Center | 628 mm | 634 mm | 645 mm | 663 mm |
| Rake | 36 mm | 41 mm | 42 mm | 41 mm |
| Trail | 95 mm | 83 mm | 82 mm | 83 mm |
| Stack | 618 mm | 621 mm | 634 mm | 649 mm |
| Reach | 366 mm | 378 mm | 383 mm | 396 mm |
| Top Tube Length | 573 mm | 587 mm | 599 mm | 618 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1091 mm | 1097 mm | 1108 mm | 1126 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
MACINA CITY XL RT belongs to the Ktm E Macina City model. 20 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina City e-bikes models from 2021, here.
Model range prices
KTM Macina City A510 2021 is the most affordable e-bike of this model and has a price of 3450$. On the other hand, KTM MACINA CITY 5 ABS 2021, is the most expensive and costs 4777$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 4193$. Doing a quick comparison, we notice that MACINA CITY XL RT price is 63.22% more expensive than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 28.1 kg (61.95 lbs), the MACINA CITY XL RT model is considerably heavier than average. In other words, this model is 11.51% heavier than the average Commuter e-bike.
MACINA CITY XL RT components
Fork
This e-bike has the SunTour NCX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, KTM MACINA CITY XL RT 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CITY XL RT has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
KTM MACINA CITY XL RT e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
