Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh SMART SYSTEM hor. -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina PTS Offroad 27.5" Alloy6061; PT625Wh Bosch Gen.4 / T-1270
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Shift Levers
Shimano Altus M315-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG40-8
Pedals
MTB-Pedal VP-195E alloy
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM +20° ICR
Handlebar
KTM COMP II low rizer 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
KTM COMP II 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.53 mm | 1.53 mm |
| Front Center | 639 mm | 662 mm | 671 mm |
| Rake | 41 mm | 48 mm | 41 mm |
| Trail | 79 mm | 72 mm | 79 mm |
| Stack | 598 mm | 614 mm | 632 mm |
| Reach | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 70.6 ° | 70.6 ° | 70.6 ° |
| Head Tube Length | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1076 mm | 1099 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 473 mm | 473 mm | 473 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

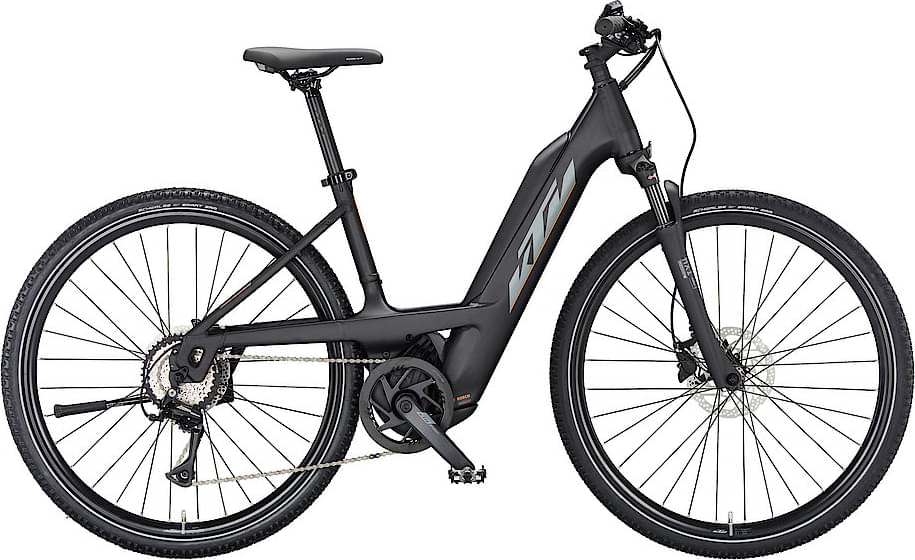

MACINA CROSS 510 PTS is a Ktm E Macina Cross model. 21 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
MACINA CROSS 510 PTS weighs 24.3 kg (53.57 lbs) and is slightly heavier than the average. To sum up, it’s 2.14% heavier than the average weight of Hybrid e-bikes.
Overview of components
Fork
The fork installed on this bike is the Suntour NX 1 model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The MACINA CROSS 510 PTS 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA CROSS 510 PTS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
