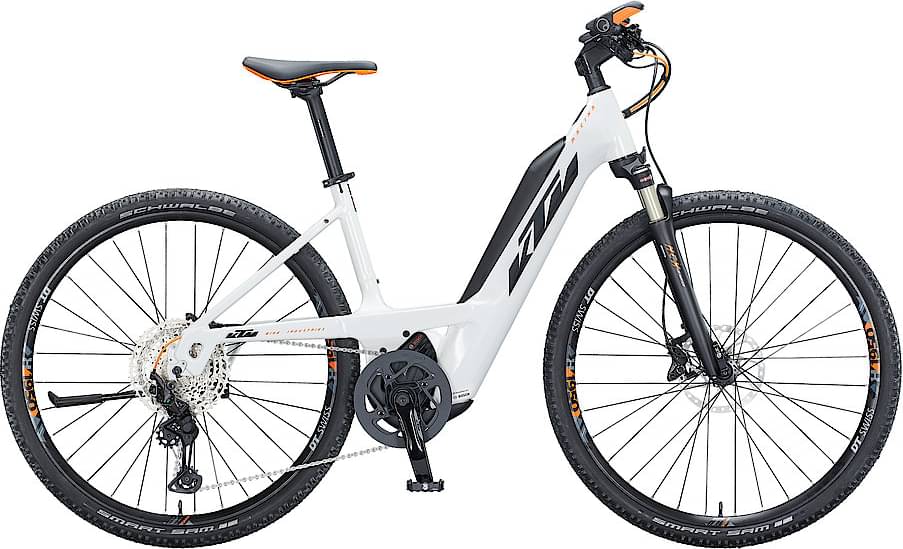

KTM MACINA CROSS 610 PTS 2021
2021 E-bike
Estimate price |
4,710$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy6061; PT625Wh Bosch Gen.4 / T-0460
Suspension Fork
Suntour NCX-E air LO 63mm 15QLC
Drivetrain
Shift Levers
Shimano Deore M6100-12 display
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore M6100-12
Wheels
Rims
KTM Line - DT Swiss 350 CL 32H 100-15TA / DT Swiss H1950 32H 622x25TC / DT Alpine III 2.34 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 180 / 160
Cockpit
Stem
KTM Team Kiox
Handlebar
KTM Team low rizer 640mm
Headset
KTM Team eTrekking 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Hybrid
Seatpost
KTM Team 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch KIOX TFT Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.53 mm | 1.53 mm | 1.52 mm |
| Front Center | 639 mm | 662 mm | 671 mm | 692 mm |
| Rake | 35 mm | 42 mm | 35 mm | 35 mm |
| Trail | 90 mm | 82 mm | 90 mm | 90 mm |
| Stack | 598 mm | 614 mm | 632 mm | 647 mm |
| Reach | 392 mm | 402 mm | 412 mm | 427 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 137 mm | 155 mm | 174 mm | 190 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1076 mm | 1099 mm | 1108 mm | 1129 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA CROSS 610 PTS is part of the Ktm E Macina Cross model. 21 e-bikes variations carry this model name so far. Take a sneak peek at all Ktm E Macina Cross e-bikes models from 2021, by clicking here.
Model range prices
KTM MACINA CROSS P510 Street 2021 is the most economical model, with a starting price of 3025$. KTM MACINA CROSS 610 PTS 2021 on the other hand costs 4299$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When KTM released this model in 2021, its price was 4299$. Comparing the average cost of a Hybrid e-bike to this one, you will see that MACINA CROSS 610 PTS price is 73.35% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 23.6 kg (52.03 lbs), KTM e-bike is slightly lighter than average. In conclusion, the average Hybrid e-bike weighs 0.81% more than MACINA CROSS 610 PTS.
Overview of components
Fork
KTM MACINA CROSS 610 PTS 2021 e-bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the MACINA CROSS 610 PTS model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA CROSS 610 PTS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
