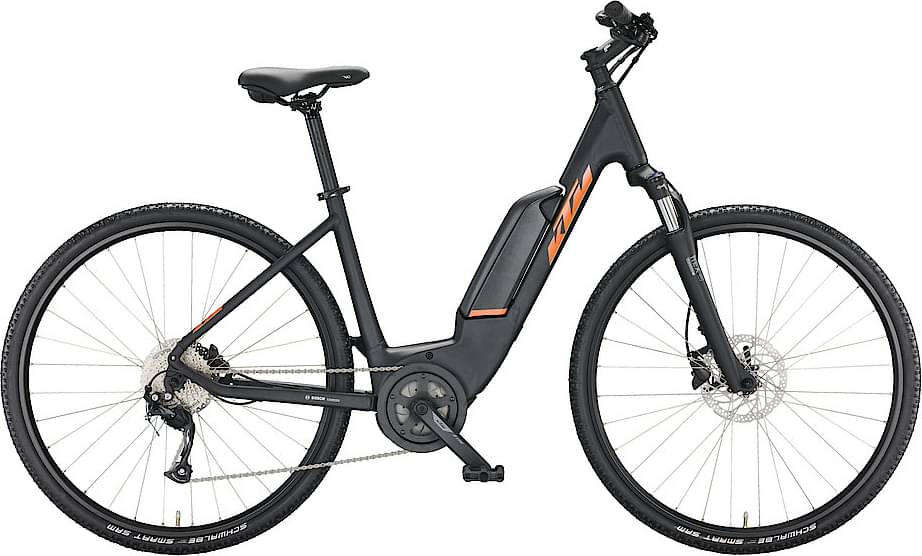

KTM MACINA CROSS A410 2022
2022 E-bike
Estimate price |
2,752$
Weight | 21.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPACK 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekk. Offroad US Alloy6061; Si-PP500Wh Bosch Gen.3 / T-2730
Suspension Fork
Suntour NEX-E25 coil NLO 63mm
Drivetrain
Rear Derailleur
Shimano Altus M2000-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG53-9
Wheels
Rims
KTM Line - Shimano MT200 CL 32H 100-5QR / Ryde Eco21 32H 622x21C / DT Champion 2.0 silver
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line 17°
Handlebar
KTM Line rizer15 640mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
Selle Royal Rio+
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch ACTIVE Gen.3 - 25km/h / 40Nm
Battery
Bosch PowerPACK 400Wh
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm | 1.64 mm |
| Front Center | 626 mm | 628 mm | 638 mm | 655 mm |
| Rake | 29 mm | 36 mm | 35 mm | 35 mm |
| Trail | 103 mm | 89 mm | 90 mm | 90 mm |
| Stack | 619 mm | 621 mm | 634 mm | 649 mm |
| Reach | 371 mm | 377 mm | 383 mm | 396 mm |
| Top Tube Length | 586 mm | 593 mm | 601 mm | 616 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1107 mm | 1109 mm | 1119 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
MACINA CROSS A410 completes the Ktm E Macina Cross model. There are 21 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM MACINA CROSS A410 2022 is the most economical model, with a starting price of 2547$. KTM MACINA CROSS 710 2022 on the other hand costs 4671$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2547$. In conclusion, this e-bike price is 2.7% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
MACINA CROSS A410 weighs 21.4 kg (47.18 lbs) and is considerably lighter than the average. To sum up, it’s 11.17% lighter than the average weight of Hybrid e-bikes.
MACINA CROSS A410 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The MACINA CROSS A410 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CROSS A410 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
