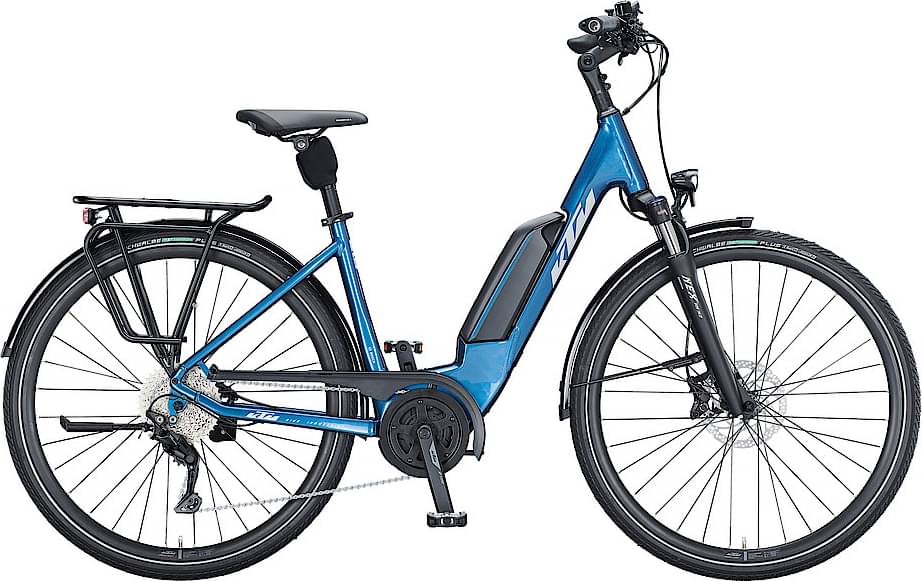

KTM MACINA FUN P510 2021
2021 E-bike
Estimate price |
3,547$
Weight | 25.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; Si-PP500Wh Bosch Gen.3 / T-9690
Suspension Fork
Suntour NEX-E25 coil NLO 63mm
Drivetrain
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano Acera M3050 CL 32H 100-5QR / Ambrosio Track Disc 32H 622x20C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / 160
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Line rizer20 640mm
Headset
Ritchey Zero Logic OE 1.1/8"
Seat
Saddle
Selle Royal Essenza
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerPACK 500Wh
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm | 1.64 mm |
| Front Center | 626 mm | 628 mm | 638 mm | 655 mm |
| Rake | 29 mm | 36 mm | 35 mm | 35 mm |
| Trail | 103 mm | 89 mm | 90 mm | 90 mm |
| Stack | 619 mm | 621 mm | 634 mm | 649 mm |
| Reach | 371 mm | 377 mm | 383 mm | 396 mm |
| Top Tube Length | 586 mm | 593 mm | 601 mm | 616 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1107 mm | 1109 mm | 1119 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
MACINA FUN P510 belongs to the Ktm E Macina Fun model. KTM released 5 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the KTM MACINA FUN A510 2021 has a starting price of 3025$. KTM MACINA FUN P510 2021 on the other hand is the most expensive at 3237$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 3237$. Comparing this to the average Hybrid e-bike price, we see that the price is 30.52% more expensive.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.2 kg (55.56 lbs), the MACINA FUN P510 model is a bit heavier than average. In conclusion, the average Hybrid e-bike weighs 5.93% less than MACINA FUN P510.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the MACINA FUN P510 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA FUN P510 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
