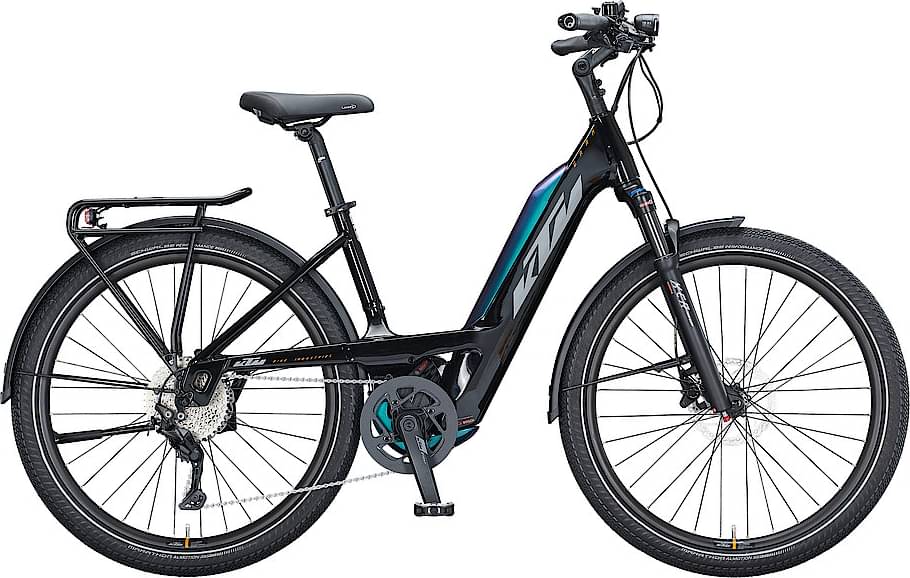

KTM MACINA GRAN 271 2021
2021 E-bike
Estimate price |
4,478$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina PTS Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-1250
Suspension Fork
Suntour XCR 34 air 27.5" LOR 80mm 15x110 taper
Drivetrain
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT400 2-Piston
Disk Rotors
Shimano RT54 CL 180 / 180
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
Ergotec Lady Town GH16 630mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Line 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.55 mm |
| Front Center | 646 mm | 645 mm | 661 mm | 677 mm | 698 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 602 mm | 606 mm | 623 mm | 641 mm | 656 mm |
| Reach | 381 mm | 389 mm | 399 mm | 409 mm | 424 mm |
| Top Tube Length | 566 mm | 576 mm | 591 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 137 mm | 137 mm | 155 mm | 174 mm | 190 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1088 mm | 1087 mm | 1103 mm | 1119 mm | 1140 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 483 mm | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
MACINA GRAN 271 belongs to the Ktm E Macina Gran model. 12 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Gran e-bikes models from 2021, here.
Model range prices
KTM MACINA GRAN P272 2021 is the most affordable e-bike of this model and has a price of 3237$. On the other hand, KTM MACINA GRAN 271 2021, is the most expensive and costs 4087$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, KTM MACINA GRAN 271 price was 4087$. If we compare this with the average General Urban e-bike cost we notice that the price is 94.8% higher.
General Urban e-bikes average weight
On a deeper look, we notice that the average weight of a General Urban e-bike is 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 26.7 kg (58.86 lbs), the MACINA GRAN 271 model is considerably heavier than average. In conclusion, the average General Urban e-bike weighs 10.88% less than MACINA GRAN 271.
MACINA GRAN 271 components
Fork
This e-bike has the SunTour XCR 34 fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the MACINA GRAN 271 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA GRAN 271 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
