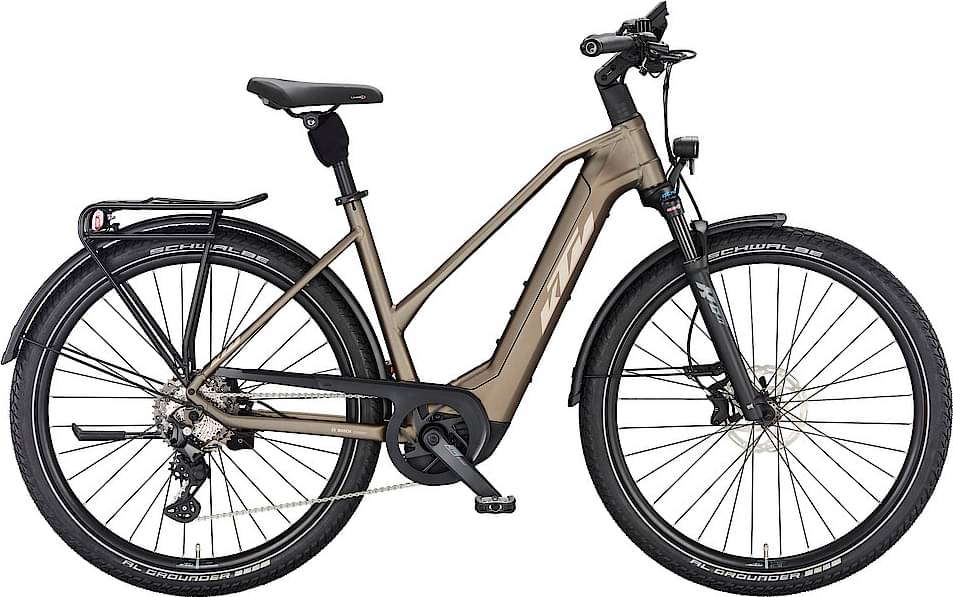

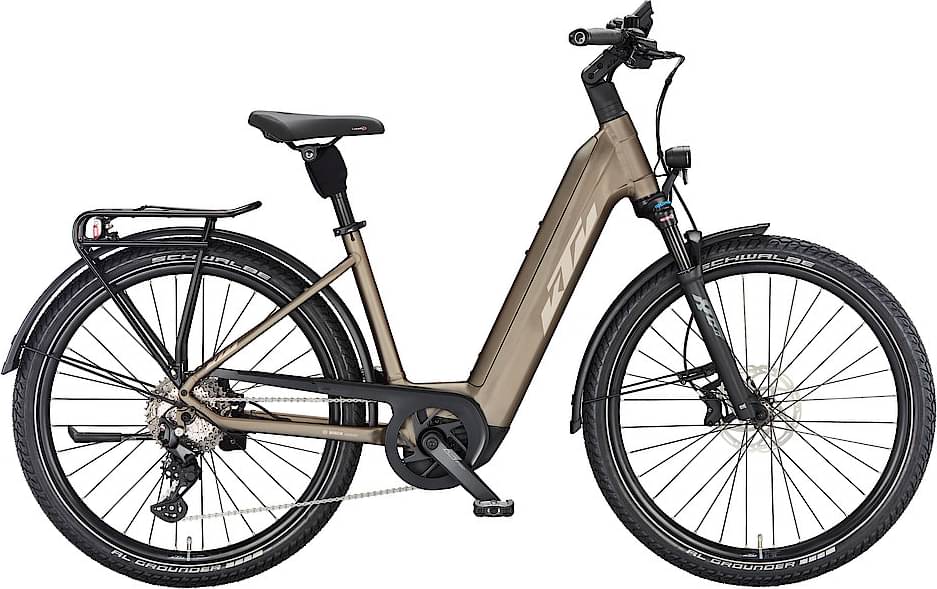

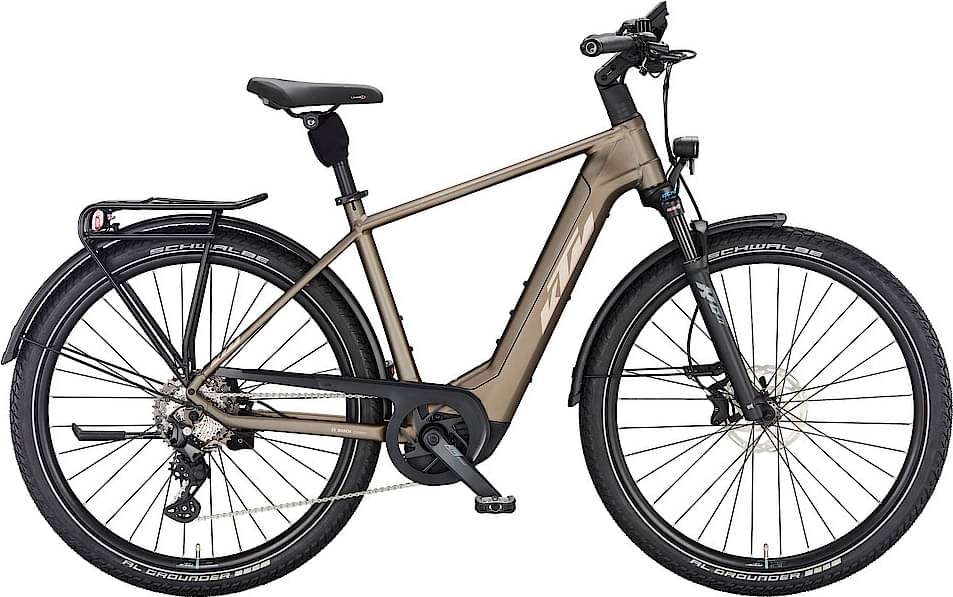

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCR
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour XCR 32 ATB coil 29" LO 80mm
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 7 for Bosch Gen.4
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32L 584x30C / DT Champion 2.0 black
Brakes
Brakes
Tektro TKD-139 / HD-E730 4-Piston
Cockpit
Stem
KTM adjust. 0-60° ICR
Handlebar
Ergotec Lady Town GH16 630mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.59 mm | 1.6 mm |
| Front Center | 659 mm | 659 mm | 669 mm | 685 mm |
| Rake | 51 mm | 53 mm | 51 mm | 52 mm |
| Trail | 74 mm | 65 mm | 67 mm | 66 mm |
| Stack | 589 mm | 609 mm | 625 mm | 643 mm |
| Reach | 383 mm | 386 mm | 392 mm | 401 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 72.2 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 68.7 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1120 mm | 1120 mm | 1130 mm | 1146 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 768 mm | 804 mm | 848 mm | 875 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MACINA GRAN 710 is part of the Ktm E Macina Gran model. There are 12 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
General Urban e-bikes average weight
On a deeper look, we notice that the average weight of a General Urban e-bike is 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
KTM MACINA GRAN 710 it’s weighing 28.7 kg (63.27 lbs). At this weight, is much heavier than average. In other words, this model is 19.19% heavier than the average General Urban e-bike.
Overview of components
Fork
The Suntour XCR is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the MACINA GRAN 710 e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA GRAN 710 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
