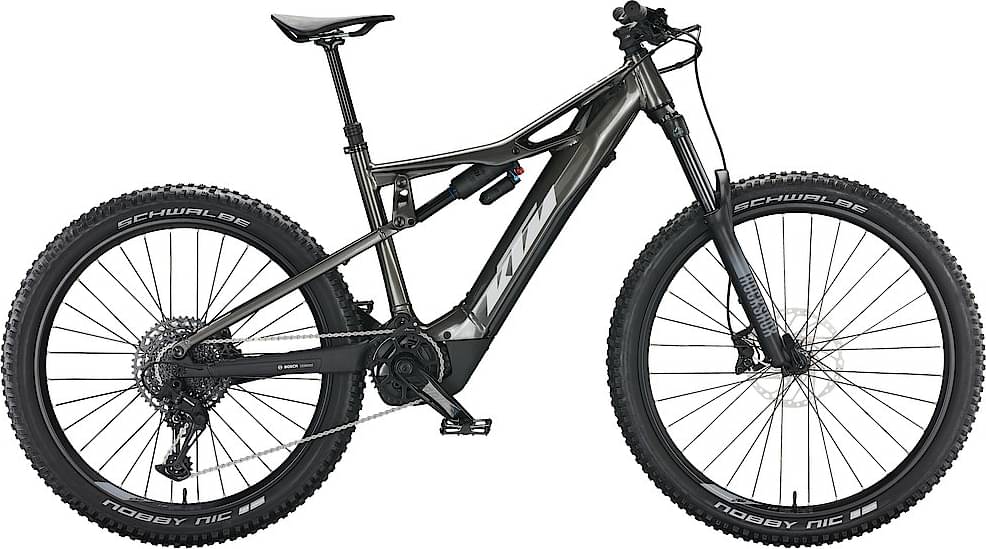

KTM MACINA KAPOHO 6971 LTD 2022
2022 E-bike
Estimate price |
5,734$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Alloy6061 SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0166
Suspension Fork
RockShox 35 Silver TK 29" 160mm
Rear Shock
Suntour Tri-Air 3CR 250x70
Drivetrain
Rear Derailleur
SRAM SX Eagle 12speed
Shift Levers
SRAM SX Eagle singleClick
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Chain Guide
Upper slider
Pedals
VPE-527 alloy flat
Wheels
Front Hub
Shimano, MT410 15x110mm Boost front, MT400 12x148mm Boost rear with HG driver
Rear Hub
Shimano, MT410 15x110mm Boost front, MT400 12x148mm Boost rear with HG driver
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Spokes
Front: DT Swiss Champion 2.0, Rear: DT Swiss Alpine II 2.34
Tires
Schwalbe Nobby Nic, Performance, folding, 29" x 2.5" (front), 27.5" x 2.8" (rear)
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Brake Levers
Shimano M4100
Disk Rotors
Shimano RT64 CL 203 / EM600 CL 180
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Comp Trail35 rizer15 780mm
Grips
KTM Comp, lock-on
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Italia Model-X Flow
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 367 mm | 367 mm | 367 mm |
| Front Center | 764 mm | 786 mm | 819 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 603 mm | 612 mm | 626 mm |
| Reach | 440 mm | 458 mm | 485 mm |
| Top Tube Length | 586 mm | 606 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1202 mm | 1224 mm | 1257 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 800 mm | 803 mm | 808 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA KAPOHO 6971 LTD is a Ktm E Macina Kapoho model. There are 26 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM MACINA KAPOHO 6971 LTD 2022 is the most economical model, with a starting price of 5308$. KTM MACINA KAPOHO PRESTIGE 2022 on the other hand costs 8812$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, KTM MACINA KAPOHO 6971 LTD price was 5308$. Comparing the average cost of an Enduro e-bike to this one, you will see that MACINA KAPOHO 6971 LTD price is 10.93% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM MACINA KAPOHO 6971 LTD it’s weighing 25.9 kg (57.1 lbs). At this weight, is considerably heavier than average. In other words, this model is 10.59% heavier than the average Enduro e-bike.
Overview of components
Fork
KTM MACINA KAPOHO 6971 LTD 2022 e-bike is equipped with the RockShox 35 Silver fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
KTM MACINA KAPOHO 6971 LTD e-bike has the Suntour Tri-Air 3CR 250×70 model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the MACINA KAPOHO 6971 LTD e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA KAPOHO 6971 LTD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
KTM MACINA KAPOHO 6971 LTD comes with a dropper post. Therefore, climbing or descending will be a breeze.
