Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 35 Gold RL
Rear Shock
RockShox Monarch RL, 200mm x 57mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle E-Click, 12-speed
Cassette
SRAM SX Eagle PG1210, 12-speed, 11-50 tooth
Crank
KTM Delta, ISIS, 160mm length
Chain
SRAM NX Eagle, 12-speed
Chain Guide
N/A
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
Front: Mavic E-XM430, 32 hole, 29", Rear: Mavic E-XM435, 32 hole, 27.5"
Spokes
Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black
Tires
Schwalbe Nobby Nic, Performance, TLR, 29" front, 27.5" rear
Brakes
Brakes
Shimano MT420, 4-piston, Shimano RT64 CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers
Shimano MT420
Cockpit
Stem
KTM Comp, 7° rise
Handlebar
KTM Comp, 25mm rise, 740mm width
Grips
KTM Comp, lock-on
Headset
KTM Team drop-in
Seat
Saddle
KTM Line MTB
Seatpost
KTM Comp dropper, external cable
Motor & Battery
Motor
Bosch Performance CX Gen.2, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.48 mm | 1.42 mm |
| Front Center | 715 mm | 735 mm | 756 mm | 778 mm |
| Rake | 47 mm | 47 mm | 47 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 116 mm |
| Stack | 616 mm | 617 mm | 621 mm | 628 mm |
| Reach | 382 mm | 402 mm | 421 mm | 441 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1203 mm | 1223 mm | 1244 mm | 1266 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 824 mm | 824 mm | 845 mm | 873 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

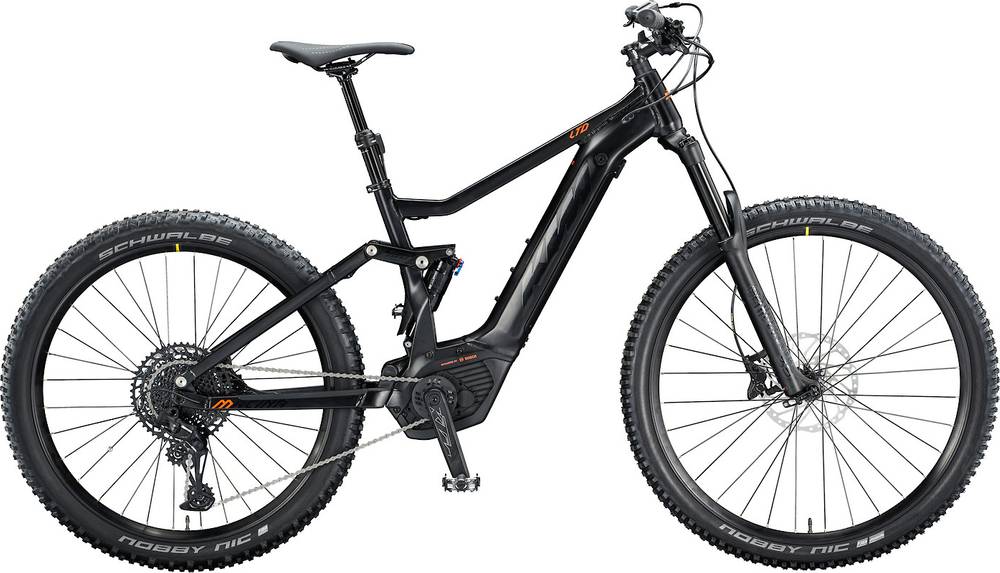

Macina Kapoho LTD is part of the Ktm E Macina Kapoho model. KTM released 26 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.5 kg (54.01 lbs), KTM e-bike is slightly heavier than average. In conclusion, the average Enduro e-bike weighs 4.61% less than Macina Kapoho LTD.
Overview of components
Fork
KTM Macina Kapoho LTD 2020 e-bike is equipped with the RockShox 35 Gold RL fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Monarch RL model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Macina Kapoho LTD model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM Macina Kapoho LTD has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Macina Kapoho LTD comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Macina Kapoho LTD. Therefore, climbing or descending will be a breeze.
