Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Rhythm Float 36
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Rhythm E-Bike
Rear Shock
FOX FLOAT DPX2 Performance, 3-position compression lever, 250mm x 70mm
Drivetrain
Rear Derailleur
Shimano XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
KTM Team, ISIS, 160mm length
Chain
Shimano SLX M7100, 12-speed
Chain Guide
Upper guide
Pedals
VP-539 nylon
Wheels
Front Hub
KTM E-Comp Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
KTM E-Comp Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
KTM E-Comp Trail, DT Swiss-made, tubeless ready, 29" front, 27.5" rear
Spokes
KTM E-Comp Trail wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 29", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 27.5"
Brakes
Brakes
Shimano MT520, 4-piston, Shimano RT64 CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers
Shimano MT520
Cockpit
Stem
KTM Team Trail, 35mm, with Kiox mount
Handlebar
KTM Team Trail, 35mm diameter, 25mm rise, 800mm width
Grips
Ergon GE10 Evo ergonomic
Headset
KTM Team
Seat
Saddle
Selle Italia X3 E-Bike Flow
Seatpost
KTM Comp dropper
Motor & Battery
Motor
Bosch Performance CX Gen.4, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.28 mm |
| Front Center | 774 mm | 796 mm | 829 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 601 mm | 610 mm | 623 mm |
| Reach | 443 mm | 461 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 76.8 ° | 76.8 ° | 76.8 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1212 mm | 1234 mm | 1267 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Standover Height | 1212 mm | 1234 mm | 1267 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

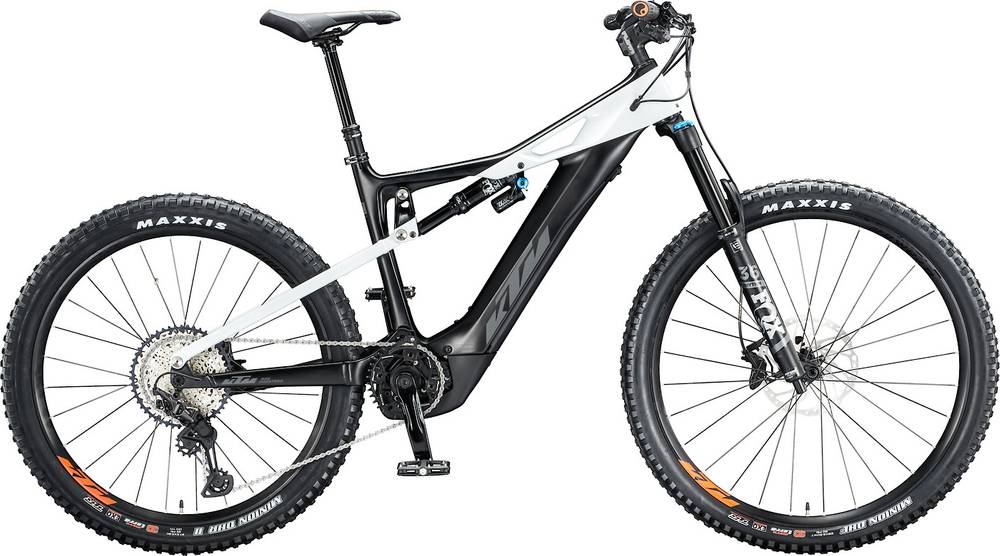

Model Overview
Macina Kapoho Master belongs to the Ktm E Macina Kapoho model. KTM launched 26 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.7 kg (54.45 lbs), the Macina Kapoho Master model is a bit heavier than average. To sum up, it’s 5.47% heavier than the average weight of Enduro e-bikes.
Macina Kapoho Master components
Fork
The Fox Rhythm Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX FLOAT DPX2 Performance rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Macina Kapoho Master e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
KTM Macina Kapoho Master e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Macina Kapoho Master. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
