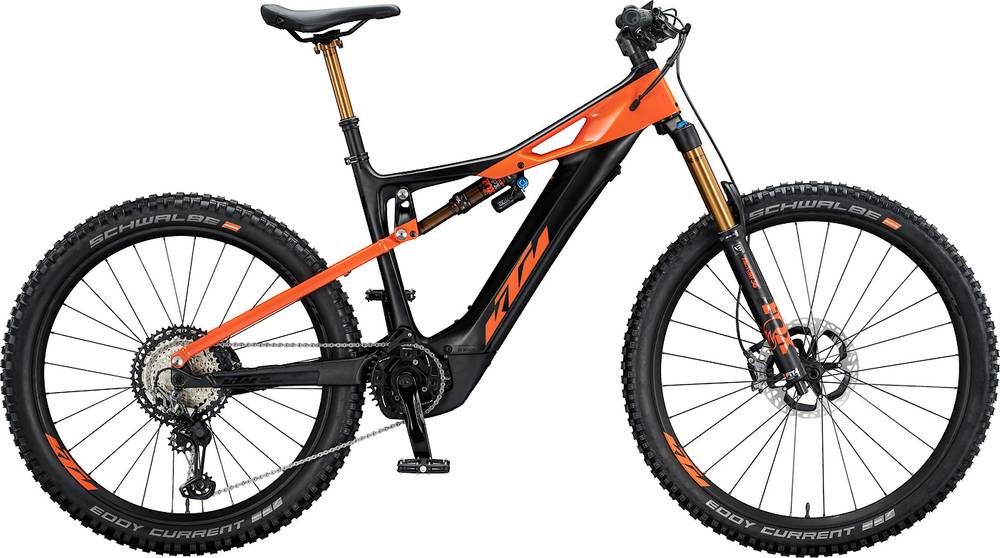

KTM Macina Kapoho Prestige 2020
2020 E-bike
Weight | 24.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Factory E-Bike, Kashima coating
Rear Shock
FOX FLOAT DPX2 Factory, 3-position compression lever, 250mm x 70mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XT M8100, 12-speed, 10-51 tooth
Crank
KTM Team, ISIS, 160mm length
Chain
Shimano XT M8100, 12-speed
Chain Guide
Upper guide
Pedals
VP-539 nylon
Wheels
Front Hub
KTM E-Prime Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
KTM E-Prime Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
KTM E-Prime Trail, DT Swiss-made, tubeless ready, 29" front, 27.5" rear
Spokes
KTM E-Prime Trail wheelset
Tires
Schwalbe Eddy Current, Evo, SuperGravity, TLE, 29" front, 27.5" rear
Brakes
Brakes
Shimano XTR M9120, 4-piston, Shimano MT900 CENTER LOCK Freeza rotors (203mm front, 180mm rear)
Brake Levers
Shimano XTR M9120
Cockpit
Stem
KTM Team Trail, 35mm, with Kiox mount
Handlebar
KTM Prime Trail Carbon, 35mm diameter, 20mm rise, 800mm width
Grips
Ergon GE10 Evo ergonomic
Headset
KTM Team
Seat
Saddle
Ergon SM-10 E-Mountain
Seatpost
FOX Transfer Factory dropper
Motor & Battery
Motor
Bosch Performance CX Gen.4, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.28 mm |
| Front Center | 774 mm | 796 mm | 829 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 601 mm | 610 mm | 623 mm |
| Reach | 443 mm | 461 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 76.8 ° | 76.8 ° | 76.8 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1212 mm | 1234 mm | 1267 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Standover Height | 1212 mm | 1234 mm | 1267 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Macina Kapoho Prestige is part of the Ktm E Macina Kapoho model. There are 26 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.5 kg (54.01 lbs), the Macina Kapoho Prestige model is slightly heavier than average. To sum up, it’s 4.61% heavier than the average weight of Enduro e-bikes.
Macina Kapoho Prestige components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX FLOAT DPX2 Factory rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Macina Kapoho Prestige are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM Macina Kapoho Prestige has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Macina Kapoho Prestige. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
