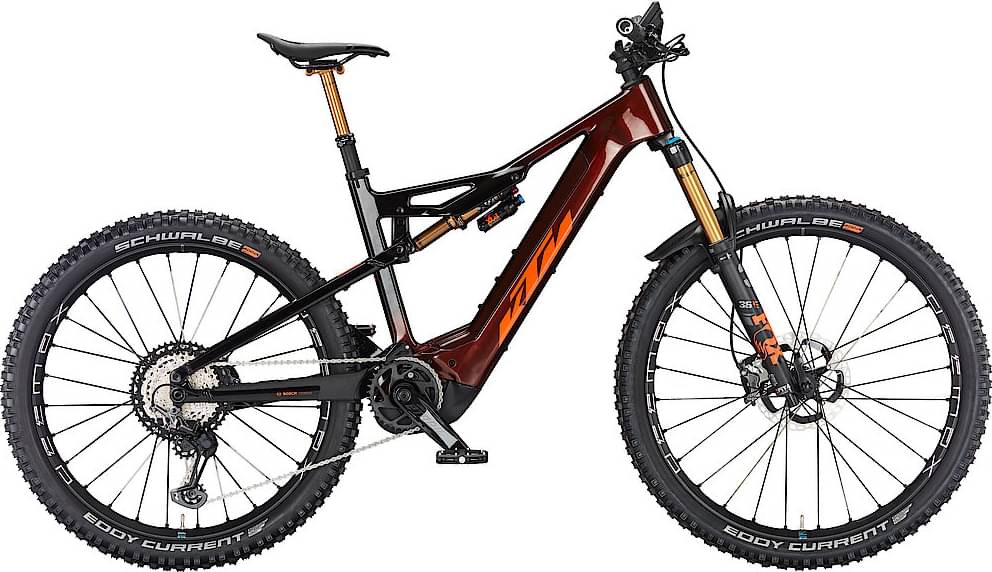

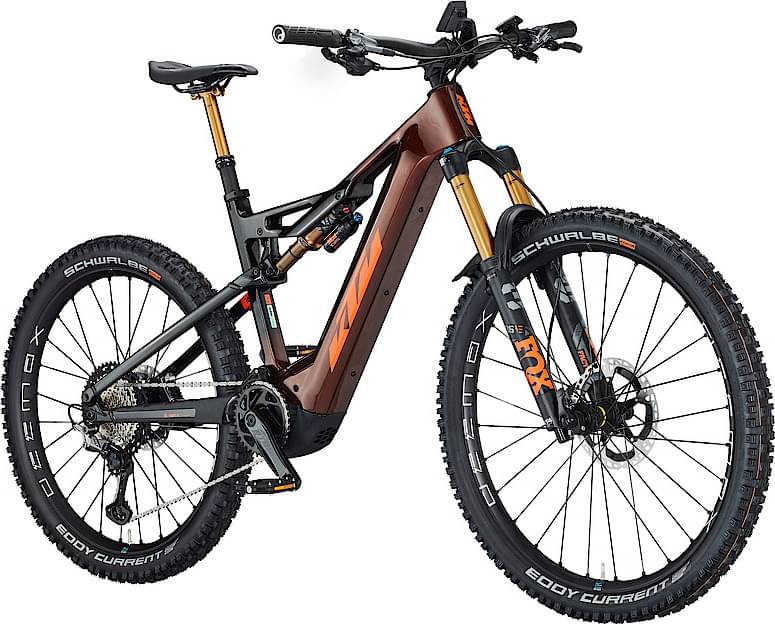

KTM MACINA KAPOHO PRESTIGE 2023
2023 E-bike
Weight | 25.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246
Suspension Fork
FOX 36 Float 29" Factory e-bike 160mm FIT4 15x110
Rear Shock
FOX Float X Factory 2-Pos 250x70
Drivetrain
Rear Derailleur
Shimano XTR M9100-12 SGS shadow+
Shift Levers
Shimano XTR M9100-12
Cassette
Shimano Deore XT M8100-12 / 10-51
Crank
KTM E-TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M8100-12
Pedals
MTB-Pedal flat VP-539 nylon
Wheels
Rims
Mavic E-Deemax S 29 CL 110/15TA / 622x30TC
Brakes
Brakes
Shimano XTR M9100 / M9120 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM Prime Trail35 Carbon rizer20 800mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco GND Open Fit Supercomfort Manganese Rails
Seatpost
FOX Transfer Factory internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.31 mm |
| Bottom Bracket Height | 367 mm | 367 mm | 367 mm |
| Front Center | 772 mm | 794 mm | 817 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 599 mm | 608 mm | 622 mm |
| Reach | 441 mm | 459 mm | 476 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1210 mm | 1232 mm | 1255 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 792 mm | 795 mm | 797 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA KAPOHO PRESTIGE belongs to the Ktm E Macina Kapoho model. There are 26 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Kapoho e-bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 25.2 kg (55.56 lbs), the MACINA KAPOHO PRESTIGE model is a bit heavier than average. In short, the average Enduro e-bike weight is 7.6% lower than this one.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The MACINA KAPOHO PRESTIGE has a rear shock with a travel of 160mm. The model FOX Float X Factory 2-Pos 250×70 is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the MACINA KAPOHO PRESTIGE e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA KAPOHO PRESTIGE is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
MACINA KAPOHO PRESTIGE comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The KTM model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
