Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL
Rear Shock
RockShox Deluxe Select+, 230mm x 62.5mm
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
KTM Comp, ISIS, 170mm length
Chain
Shimano SLX M7100, 12-speed
Chain Guide
Upper Guide
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano SLX M7110B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
Shimano SLX M7110B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
Ambrosio E30 Trail, 32 hole
Spokes
Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black
Tires
Schwalbe Nobby Nic, Performance, TLR
Brakes
Brakes
Shimano MT420, 4-piston, Shimano RT64 CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers
Shimano MT420
Cockpit
Stem
KTM Comp, 7° rise
Handlebar
KTM Comp, 25mm rise, 740mm width
Grips
Ergon GE10 Evo ergonomic
Headset
KTM Team
Seat
Saddle
Ergon SM10
Seatpost
KTM Comp dropper
Motor & Battery
Motor
Bosch Performance CX Gen.4, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.427 mm | 1.377 mm | 1.32 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 700 | 714 mm | 735 mm | 767 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 103 mm | 103 mm | 103 mm |
| Stack | 595 mm | 598 mm | 603 mm | 614 mm |
| Reach | 400 mm | 419 mm | 438 mm | 465 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1150 mm | 1164 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 767 mm | 766 mm | 770 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

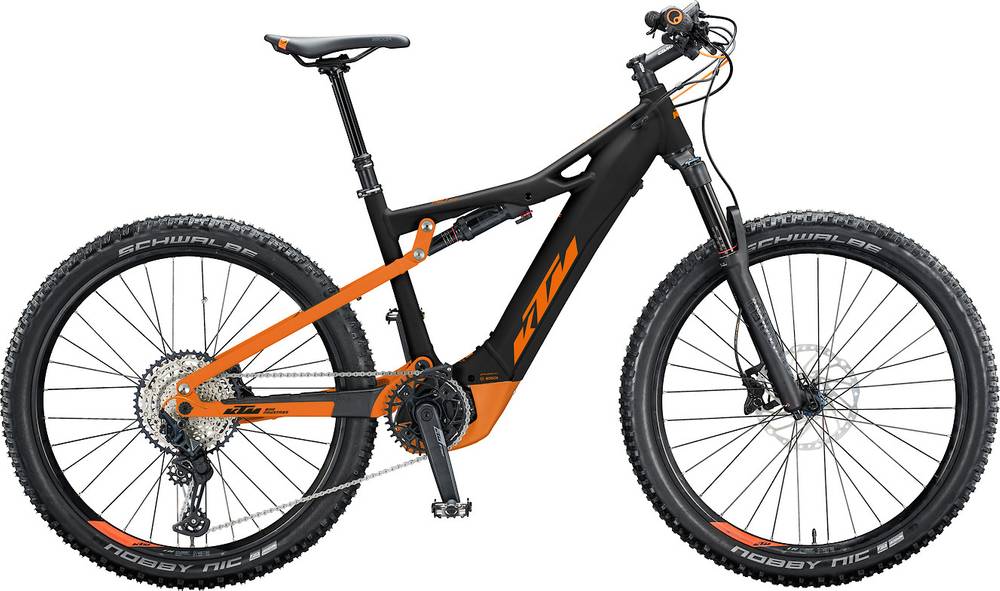

Macina Lycan 271 is a Ktm E Macina Lycan model. KTM launched 16 e-bikes of this model so far. Take a sneak peek at all Ktm E Macina Lycan e-bikes models from 2020, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM Macina Lycan 271 it’s weighing 24.6 kg (54.23 lbs). At this weight, is slightly heavier than average. In other words, this model is 3.8% heavier than the average Trail e-bike.
Overview of components
Fork
KTM Macina Lycan 271 2020 e-bike is equipped with the RockShox Recon Silver RL fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Macina Lycan 271 has a rear shock with a travel of 140mm. The model RockShox Deluxe Select+ is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Macina Lycan 271 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
KTM Macina Lycan 271 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
