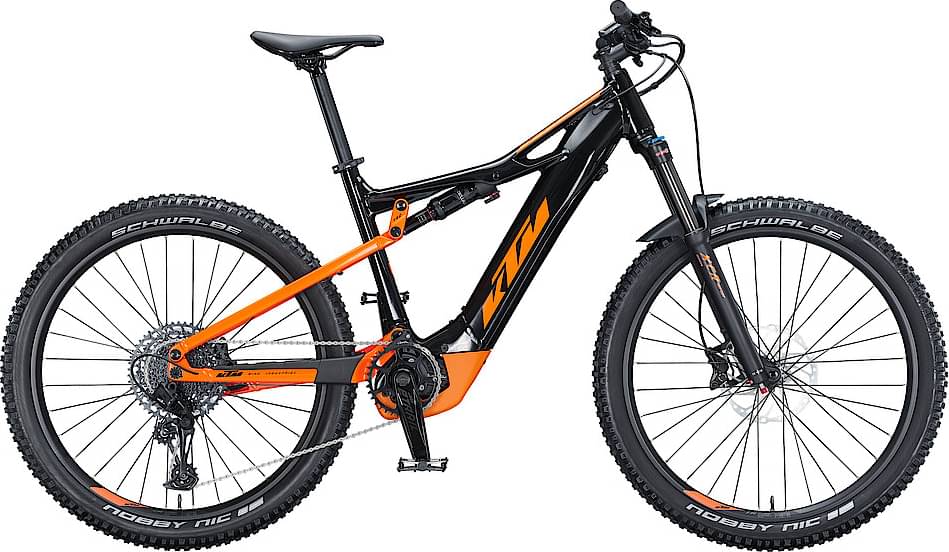

KTM MACINA LYCAN 272 2021
2021 E-bike
Estimate price |
4,943$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour XCR 34
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT625 Bosch Gen.4 / M-0196
Suspension Fork
Suntour XCR 34 air 27.5" LOR 140mm 15x110 taper
Rear Shock
RockShox Deluxe Select+ 230x62.5
Drivetrain
Shift Levers
SRAM SX Eagle eClick 12
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
KTM TRAIL ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer25 740mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.427 mm | 1.377 mm | 1.32 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 700 | 714 mm | 735 mm | 767 mm |
| Rake | 38 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 103 mm | 103 mm | 103 mm |
| Stack | 595 mm | 598 mm | 603 mm | 614 mm |
| Reach | 400 mm | 419 mm | 438 mm | 465 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1150 mm | 1164 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 767 mm | 766 mm | 770 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MACINA LYCAN 272 belongs to the Ktm E Macina Lycan model. There are 16 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Lycan e-bikes models from 2021, here.
Model range prices
KTM MACINA LYCAN 272 2021 is the most economical model, with a starting price of 4512$. KTM MACINA LYCAN 271 2021 on the other hand costs 5255$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4512$. In conclusion, this e-bike price is 34.09% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
MACINA LYCAN 272 weighs 25.3 kg (55.78 lbs) and is a bit heavier than the average. In conclusion, the average Trail e-bike weighs 6.75% less than MACINA LYCAN 272.
Overview of components
Fork
This e-bike has the SunTour XCR 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
KTM MACINA LYCAN 272 e-bike has the RockShox Deluxe Select+ 230×62.5 model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on MACINA LYCAN 272 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA LYCAN 272 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
KTM MACINA LYCAN 272 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
