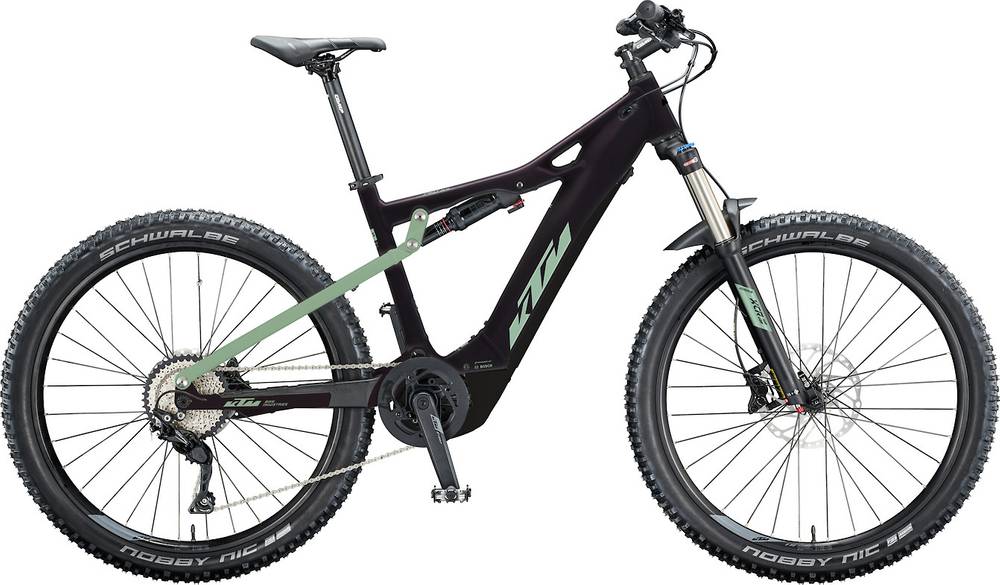

KTM Macina Lycan 272 Glory 2020
2020 E-bike
Weight | 24.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour XCR 34 Air LOR
Rear Shock
RockShox Deluxe Select+, 230mm x 62.5mm
Drivetrain
Rear Derailleur
Shimano Deore M6000-10, 10-speed, SHADOW RD+, GS cage
Front Derailleur
N/A
Shift Levers
Shimano Deore M6000-10, 10-speed, with display
Cassette
Shimano Deore HG500-10, 10-speed, 11-42 tooth
Crank
KTM Comp, ISIS, 170mm length
Chain
Shimano E6090-10 E-Bike, 10-speed
Chain Guide
N/A
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
Ambrosio E30 Trail, 32 hole
Spokes
Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black
Tires
Schwalbe Nobby Nic, Performance, TLR
Brakes
Brakes
Shimano MT420, 4-piston, Shimano RT64 CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers
Shimano MT420
Cockpit
Stem
KTM Comp, 7° rise
Handlebar
KTM Comp, 25mm rise, 740mm width
Grips
KTM Comp Ergo, lock-on
Headset
KTM Team
Seat
Saddle
Selle Italia X3 XP Lady
Seatpost
KTM Comp, 400mm
Motor & Battery
Motor
Bosch Performance CX Gen.4, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.427 mm | 1.377 mm | 1.32 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 700 | 714 mm | 735 mm | 767 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 103 mm | 103 mm | 103 mm |
| Stack | 595 mm | 598 mm | 603 mm | 614 mm |
| Reach | 400 mm | 419 mm | 438 mm | 465 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1150 mm | 1164 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 767 mm | 766 mm | 770 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Macina Lycan 272 Glory is part of the Ktm E Macina Lycan model. 16 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
KTM Macina Lycan 272 Glory it’s weighing 24.8 kg (54.67 lbs). At this weight, is slightly heavier than average. To sum up, it’s 4.64% heavier than the average weight of Trail e-bikes.
Macina Lycan 272 Glory components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Macina Lycan 272 Glory has a rear shock with a travel of 140mm. The model RockShox Deluxe Select+ is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Macina Lycan 272 Glory model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM Macina Lycan 272 Glory has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
KTM Macina Lycan 272 Glory e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
