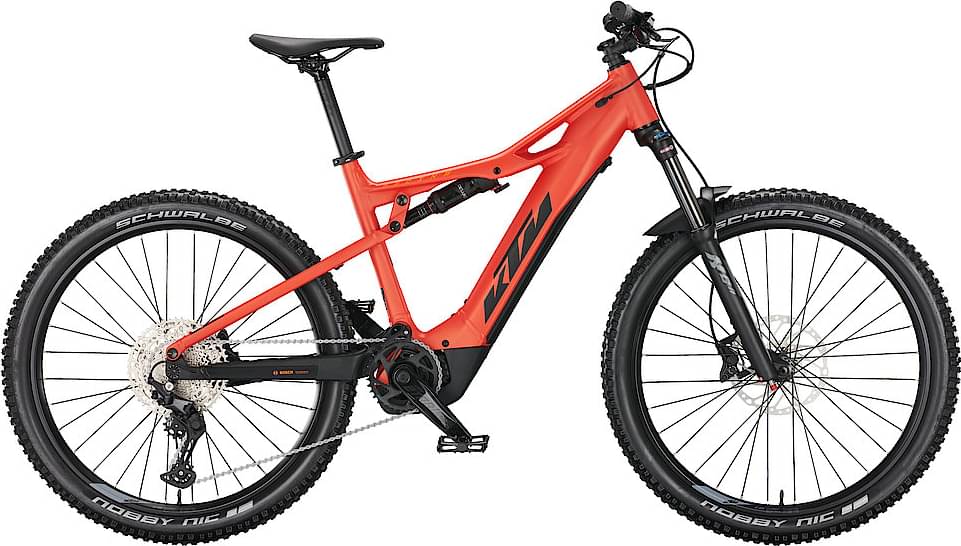

KTM MACINA LYCAN 671 LTD 2022
2022 E-bike
Estimate price |
5,390$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT625 Bosch Gen.4 / M-0196
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper
Rear Shock
RockShox Deluxe Select+ 230x62.5
Drivetrain
Rear Derailleur
Shimano Deore M5100-11 SGS shadow+
Shift Levers
Shimano Deore M5100-11
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM TRAIL ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / EM600 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer25 740mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.427 mm | 1.377 mm | 1.32 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 700 | 714 mm | 735 mm | 767 mm |
| Rake | 38 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 103 mm | 103 mm | 103 mm |
| Stack | 595 mm | 598 mm | 603 mm | 614 mm |
| Reach | 400 mm | 419 mm | 438 mm | 465 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1150 mm | 1164 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 767 mm | 766 mm | 770 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA LYCAN 671 LTD completes the Ktm E Macina Lycan model. KTM launched 16 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA LYCAN 671 LTD GLORIOUS 2022 is the most affordable e-bike of this model and has a price of 4989$. On the other hand, KTM MACINA LYCAN 771 GLORIOUS 2022, is the most expensive and costs 5945$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 4989$. Comparing the average cost of a Trail e-bike to this one, you will see that MACINA LYCAN 671 LTD price is 48.26% more expensive.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.9 kg (54.9 lbs), the MACINA LYCAN 671 LTD model is a bit heavier than average. In short, the average Trail e-bike weight is 5.06% lower than this one.
MACINA LYCAN 671 LTD components
Fork
The MACINA LYCAN 671 LTD comes factory-installed with the Suntour XCR 34 fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select+ 230×62.5 model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the MACINA LYCAN 671 LTD e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
