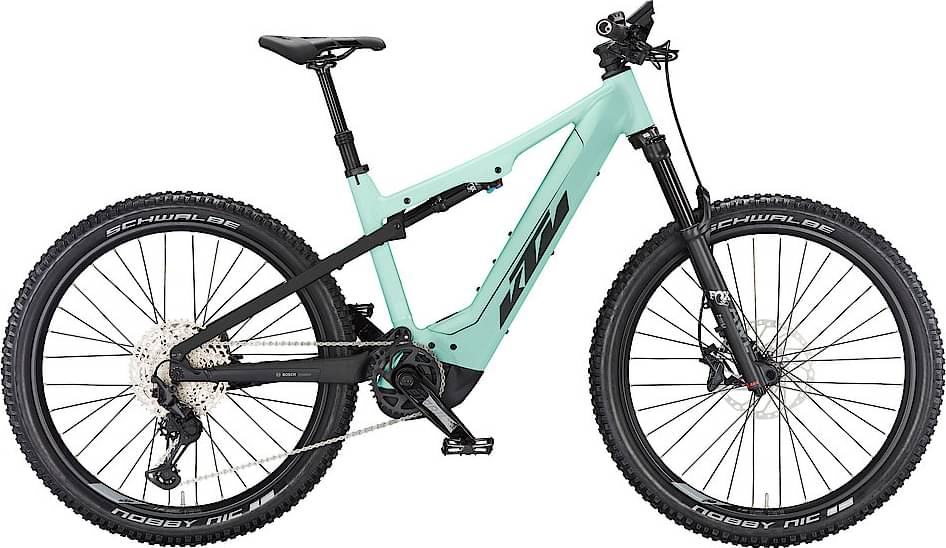

KTM MACINA LYCAN 771 GLORIOUS 2023
2023 E-bike
Weight | 26.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT750 Bosch Gen.4 / M-2296
Suspension Fork
FOX 34 Float AWL 27.5" e-bike 140mm 15x110
Rear Shock
FOX Float DPS Performance 230x62.5
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12 display
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM E-TRAIL ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano Deore M6100 / M6120 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP II Trail35 rizer15 760mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Ground Short Open Fit Narrow
Seatpost
KTM COMP II dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.44 mm | 1.385 mm | 1.327 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 701 mm | 715 mm | 742 mm | 768 mm |
| Rake | 46 mm | 44 mm | 43 mm | 40 mm |
| Trail | 104 mm | 103 mm | 104 mm | 107 mm |
| Stack | 600 mm | 602 mm | 612 mm | 621 mm |
| Reach | 397 mm | 418 mm | 442 mm | 468 mm |
| Top Tube Length | 565 mm | 585 mm | 610 mm | 635 mm |
| Seat Tube Angle | 74.4 ° | 74.5 ° | 74.7 ° | 74.9 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1151 mm | 1165 mm | 1192 mm | 1218 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 786 mm | 785 mm | 790 mm | 791 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA LYCAN 771 GLORIOUS belongs to the Ktm E Macina Lycan model. There are 16 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM MACINA LYCAN 771 GLORIOUS it’s weighing 26.2 kg (57.76 lbs). At this weight, is considerably heavier than average. In other words, this model is 10.55% heavier than the average Trail e-bike.
Overview of components
Fork
KTM MACINA LYCAN 771 GLORIOUS 2023 e-bike is equipped with the Fox AWL fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is FOX Float DPS Performance 230×62.5, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on MACINA LYCAN 771 GLORIOUS are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
KTM MACINA LYCAN 771 GLORIOUS comes with a dropper post. Therefore, climbing or descending will be a breeze.
