Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT750 Bosch Gen.4 / M-2296
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper
Rear Shock
RockShox Deluxe Select+ 230x62.5
Drivetrain
Rear Derailleur
Shimano Deore M5100-11 SGS shadow+
Shift Levers
Shimano Deore M5100-11
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM E-TRAIL ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M750 / E730 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP II Trail35 rizer15 760mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP II dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.44 mm | 1.385 mm | 1.327 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 701 mm | 715 mm | 742 mm | 768 mm |
| Rake | 46 mm | 44 mm | 43 mm | 40 mm |
| Trail | 104 mm | 103 mm | 104 mm | 107 mm |
| Stack | 600 mm | 602 mm | 612 mm | 621 mm |
| Reach | 397 mm | 418 mm | 442 mm | 468 mm |
| Top Tube Length | 565 mm | 585 mm | 610 mm | 635 mm |
| Seat Tube Angle | 74.4 ° | 74.5 ° | 74.7 ° | 74.9 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1151 mm | 1165 mm | 1192 mm | 1218 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 786 mm | 785 mm | 790 mm | 791 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

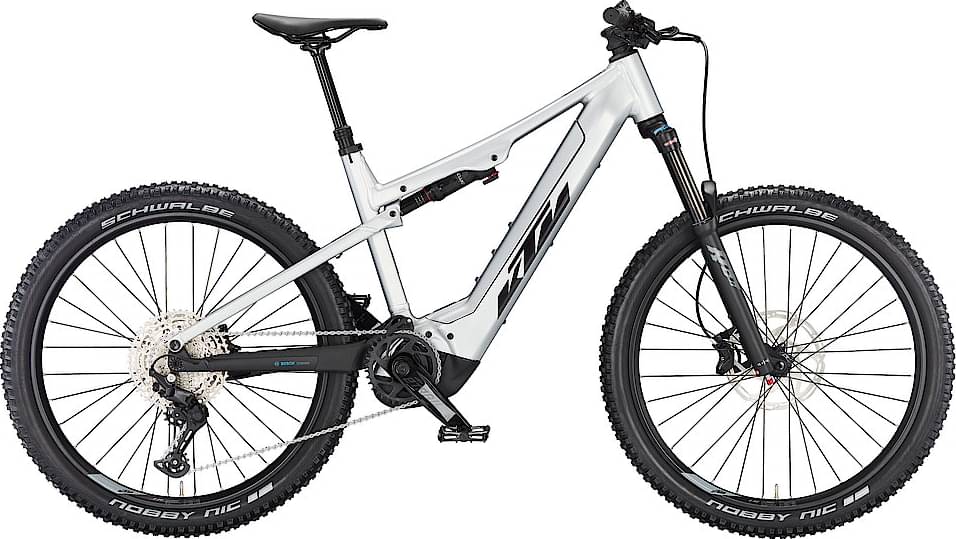

MACINA LYCAN 772 is a Ktm E Macina Lycan model. 16 e-bikes variations carry this model name so far. Take a sneak peek at all Ktm E Macina Lycan e-bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, MACINA LYCAN 772 has a weight of 26.6 kg (58.64 lbs). To sum up, it’s 12.24% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
KTM MACINA LYCAN 772 e-bike has the RockShox Deluxe Select+ 230×62.5 model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, KTM MACINA LYCAN 772 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA LYCAN 772 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
