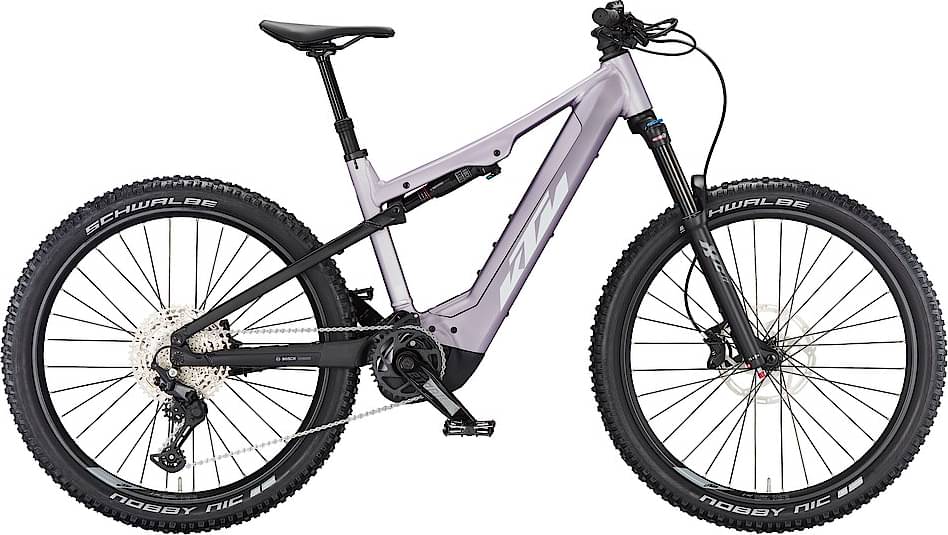

KTM MACINA LYCAN 772 GLORIOUS 2023
2023 E-bike
Weight | 26.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT750 Bosch Gen.4 / M-2296
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper
Rear Shock
RockShox Deluxe Select+ 230x62.5
Drivetrain
Rear Derailleur
Shimano Deore M5100-11 SGS shadow+
Shift Levers
Shimano Deore M5100-11
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM E-TRAIL ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M750 / E730 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP II Trail35 rizer15 760mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP II dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.44 mm | 1.385 mm | 1.327 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 701 mm | 715 mm | 742 mm | 768 mm |
| Rake | 46 mm | 44 mm | 43 mm | 40 mm |
| Trail | 104 mm | 103 mm | 104 mm | 107 mm |
| Stack | 600 mm | 602 mm | 612 mm | 621 mm |
| Reach | 397 mm | 418 mm | 442 mm | 468 mm |
| Top Tube Length | 565 mm | 585 mm | 610 mm | 635 mm |
| Seat Tube Angle | 74.4 ° | 74.5 ° | 74.7 ° | 74.9 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1151 mm | 1165 mm | 1192 mm | 1218 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 786 mm | 785 mm | 790 mm | 791 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA LYCAN 772 GLORIOUS is part of the Ktm E Macina Lycan model. There are 16 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 26.3 kg (57.98 lbs), KTM e-bike is considerably heavier than average. In other words, this model is 10.97% heavier than the average Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select+ 230×62.5 model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, KTM MACINA LYCAN 772 GLORIOUS 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
MACINA LYCAN 772 GLORIOUS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
