Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
Suspension Fork
RockShox Domain RC 29" 180mm 15x110 taper
Rear Shock
FOX Float X Performance 2-Pos 250x75
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM E-TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM Team Trail35 rizer25 800mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Ground Short Open Fit Narrow
Seatpost
KTM COMP II dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 377 mm | 377 mm | 377 mm |
| Front Center | 784 mm | 806 mm | 829 mm |
| Rake | 48 mm | 47 mm | 47 mm |
| Trail | 128 mm | 130 mm | 130 mm |
| Stack | 608 mm | 618 mm | 632 mm |
| Reach | 428 mm | 446 mm | 463 mm |
| Top Tube Length | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 64.1 ° | 64.1 ° | 64.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1222 mm | 1244 mm | 1267 mm |
| Bottom Bracket Drop | -3 mm | -3 mm | -3 mm |
| Standover Height | 812 mm | 814 mm | 816 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

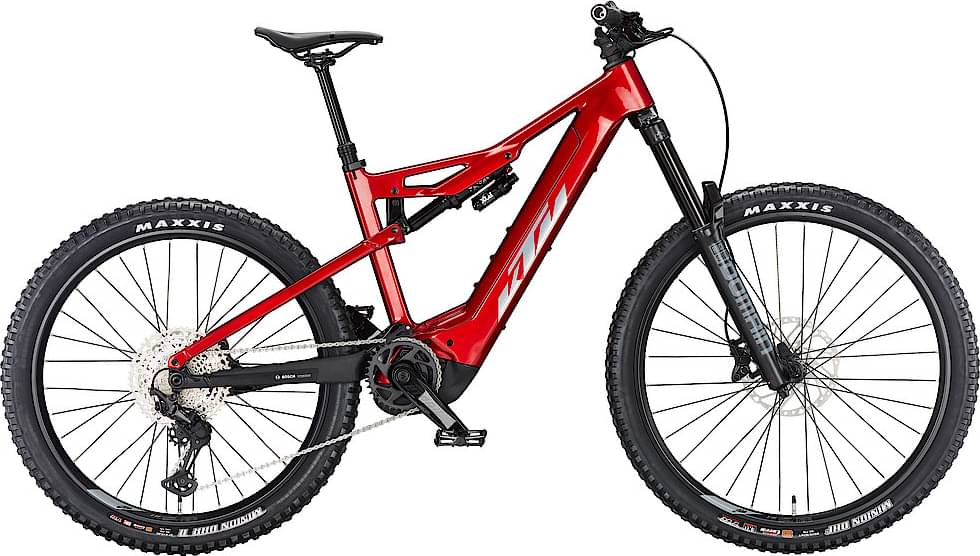

Model Overview
MACINA PROWLER ELITE is a Ktm E Macina Prowler model. There are 14 e-bikes that carry this model name. Take a sneak peek at all Ktm E Macina Prowler e-bikes models from 2023, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
MACINA PROWLER ELITE weighs 25.8 kg (56.88 lbs) and is considerably heavier than the average. In other words, this model is 10.16% heavier than the average Enduro e-bike.
MACINA PROWLER ELITE components
Fork
The MACINA PROWLER ELITE comes factory-installed with the RockShox Domain fork. This has a travel range of 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
KTM MACINA PROWLER ELITE e-bike has the FOX Float X Performance 2-Pos 250×75 model installed, and has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the MACINA PROWLER ELITE model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA PROWLER ELITE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
KTM MACINA PROWLER ELITE e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the MACINA PROWLER ELITE. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
