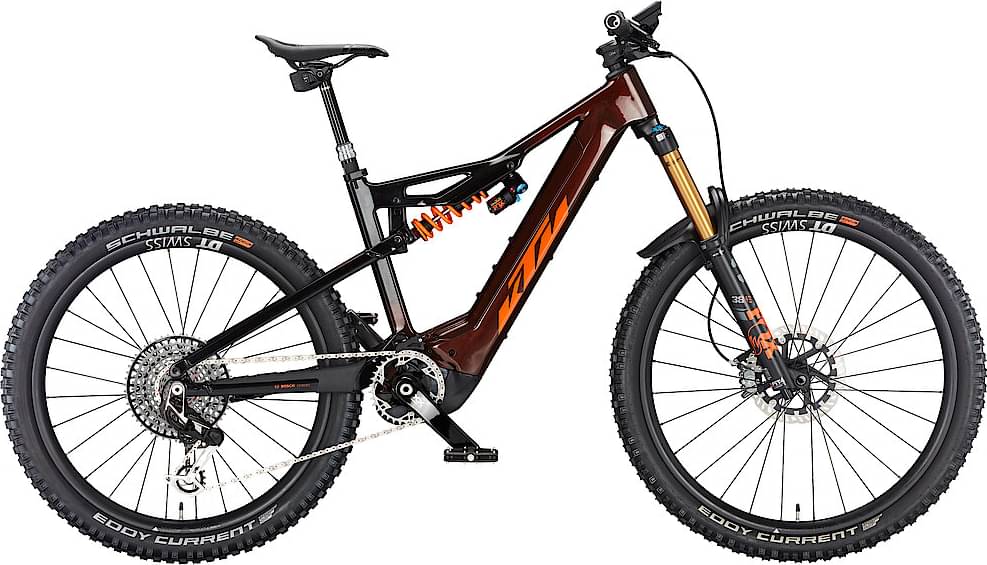

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
Suspension Fork
FOX 38 Float 29" Factory e-bike 180mm FIT4 15x110
Rear Shock
FOX DHX2 Factory 2Position 250x75
Drivetrain
Rear Derailleur
SRAM XX Eagle T-Type 12speed
Shift Levers
SRAM POD Ultimate AXS Controller
Cassette
SRAM XX Eagle T-Type XS-1297 / 10-52
Crank
FSA CK-702/IS Carbon 160mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM XX Eagle T-Type 12s
Pedals
MTB-Pedal flat VP-539 nylon
Wheels
Rims
DT Swiss HXC 1501 SPLINE 29 CL 110/15TA / 622x30TSS
Brakes
Brakes
Magura MT7 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM Prime Trail35 Carbon rizer20 800mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco GND Open Fit Supercomfort Manganese Rails
Seatpost
RockShox Reverb AXS wireless
Motor & Battery
Motor
Bosch PERFORMANCE CX RACE Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 377 mm | 377 mm | 377 mm |
| Front Center | 784 mm | 806 mm | 829 mm |
| Rake | 48 mm | 47 mm | 47 mm |
| Trail | 128 mm | 130 mm | 130 mm |
| Stack | 608 mm | 618 mm | 632 mm |
| Reach | 428 mm | 446 mm | 463 mm |
| Top Tube Length | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 64.1 ° | 64.1 ° | 64.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1222 mm | 1244 mm | 1267 mm |
| Bottom Bracket Drop | -3 mm | -3 mm | -3 mm |
| Standover Height | 812 mm | 814 mm | 816 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA PROWLER EXONIC is part of the Ktm E Macina Prowler model. KTM released 14 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.9 kg (54.9 lbs), KTM e-bike is a bit heavier than average. In short, the average Enduro e-bike weight is 6.32% lower than this one.
MACINA PROWLER EXONIC components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
KTM MACINA PROWLER EXONIC e-bike has the FOX DHX2 Factory 2Position 250×75 model installed, and has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on MACINA PROWLER EXONIC are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the MACINA PROWLER EXONIC. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
