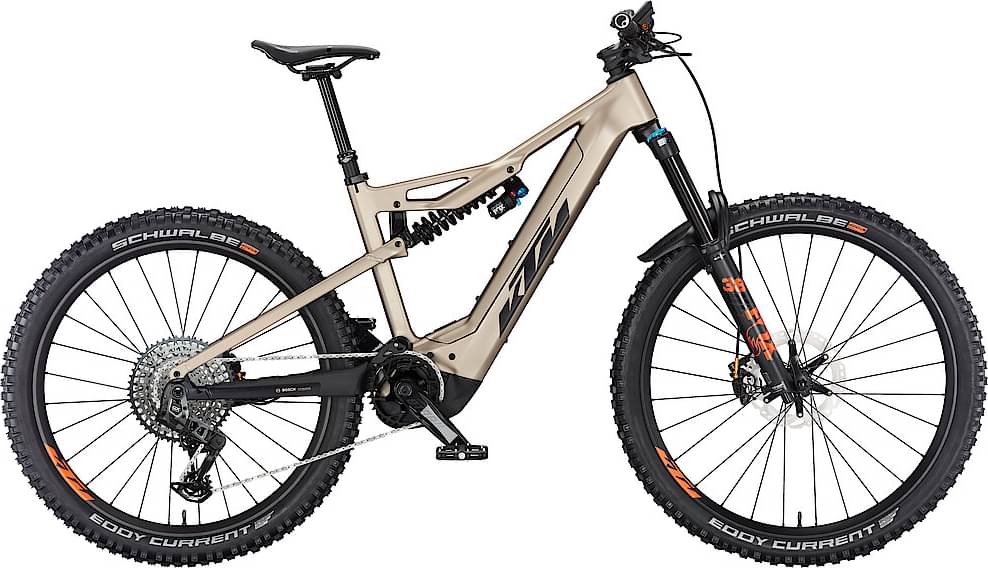

KTM MACINA PROWLER PRESTIGE 2023
2023 E-bike
Weight | 26.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
Suspension Fork
FOX 38 Float 29" Performance e-bike 180mm 15x110 taper
Rear Shock
FOX DHX2 PerformanceElite 2-Pos 250x75
Drivetrain
Rear Derailleur
SRAM GX Eagle T-Type 12speed
Shift Levers
SRAM POD AXS Controller
Cassette
SRAM GX Eagle T-Type XS-1275 / 10-52
Crank
KTM E-TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM GX Eagle T-Type 12s
Pedals
MTB-Pedal flat VP-539 nylon
Wheels
Rims
KTM E-Team Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
Brakes
Brakes
Shimano Saint M820 / M820 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM Prime Trail35 Carbon rizer20 800mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Ground Short Open Fit Narrow
Seatpost
FOX Transfer Performance internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 377 mm | 377 mm | 377 mm |
| Front Center | 784 mm | 806 mm | 829 mm |
| Rake | 48 mm | 47 mm | 47 mm |
| Trail | 128 mm | 130 mm | 130 mm |
| Stack | 608 mm | 618 mm | 632 mm |
| Reach | 428 mm | 446 mm | 463 mm |
| Top Tube Length | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 64.1 ° | 64.1 ° | 64.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1222 mm | 1244 mm | 1267 mm |
| Bottom Bracket Drop | -3 mm | -3 mm | -3 mm |
| Standover Height | 812 mm | 814 mm | 816 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA PROWLER PRESTIGE is a Ktm E Macina Prowler model. 14 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
MACINA PROWLER PRESTIGE weighs 26.2 kg (57.76 lbs) and is considerably heavier than the average. In other words, this model is 11.87% heavier than the average Enduro e-bike.
Overview of components
Fork
This e-bike has the Fox Performance Float 38 fork installed. The fork’s travel is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX DHX2 PerformanceElite 2-Pos 250×75 model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the MACINA PROWLER PRESTIGE e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
KTM MACINA PROWLER PRESTIGE e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the MACINA PROWLER PRESTIGE. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
