Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Lyric Ultimate
Rear Shock
RockShox Super Deluxe Coil Select+, 205mm x 75mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12-speed, electronic wireless
Front Derailleur
N/A
Shift Levers
SRAM Eagle AXS, 12-speed, electronic wireless
Cassette
SRAM XX1 Eagle XG-1299, 12-speed, 10-50 tooth, gold finish
Crank
FSA CK-702/IS Carbon, 160mm length
Chain
SRAM XX1 Eagle, 12-speed, gold finish
Chain Guide
Upper guide
Pedals
VP-539 nylon
Wheels
Front Hub
DT Swiss HXC 1200 Spline 30 wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear with XD driver
Rear Hub
DT Swiss HXC 1200 Spline 30 wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear with XD driver
Rims
DT Swiss HXC 1200 Spline 30 Carbon, tubeless ready, 29" front, 27.5" rear
Spokes
DT Swiss HXC 1200 Spline 30 wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 29", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 27.5"
Brakes
Brakes
Shimano XTR M9120, 4-piston, Shimano MT900 CENTER LOCK Freeza rotors (203mm front, 180mm rear)
Brake Levers
Shimano XTR M9120
Cockpit
Stem
KTM Team Trail, 35mm, with Kiox mount
Handlebar
KTM Prime Trail Carbon, 35mm diameter, 20mm rise, 800mm width
Grips
Ergon GE10 Evo ergonomic
Headset
KTM Team
Seat
Saddle
Ergon SM-10 E-Mountain Sport
Seatpost
RockShox Reverb AXS dropper, electronic wireless
Motor & Battery
Motor
Bosch Performance CX Gen.4, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.29 mm |
| Front Center | 778 mm | 800 mm | 833 mm |
| Rake | 48 mm | 48 mm | 47 mm |
| Trail | 122 mm | 122 mm | 123 mm |
| Stack | 603 mm | 612 mm | 626 mm |
| Reach | 440 mm | 458 mm | 485 mm |
| Top Tube Length | 586 mm | 606 mm | 636 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1216 mm | 1238 mm | 1271 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Standover Height | 797 mm | 800 mm | 804 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

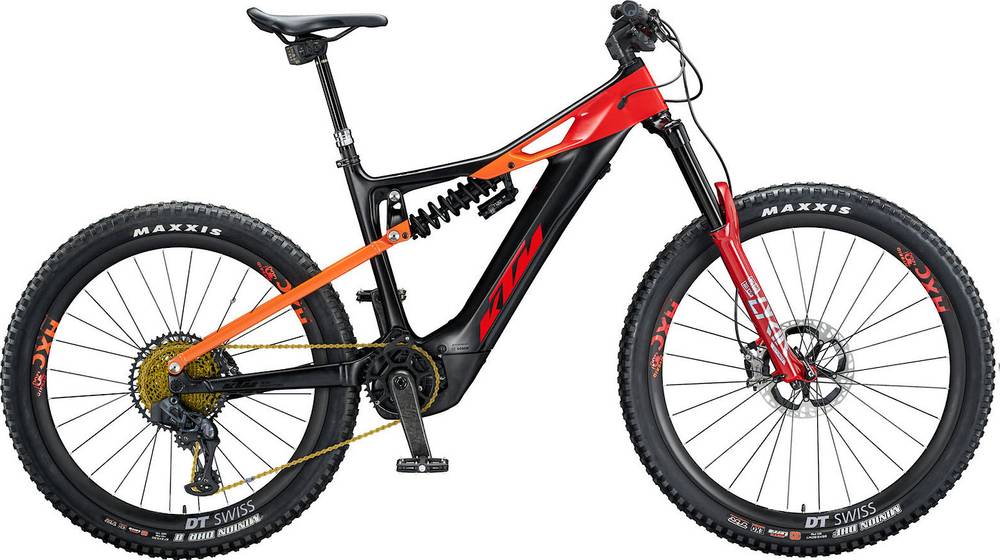

Macina Prowler Sonic completes the Ktm E Macina Prowler model. 14 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Macina Prowler Sonic has a weight of 24.1 kg (53.13 lbs). In other words, this model is 2.9% heavier than the average Enduro e-bike.
Macina Prowler Sonic components
Fork
The fork installed on this bike is the RockShox model. The travel on this model is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Macina Prowler Sonic has a rear shock with a travel of 170mm. The model RockShox Super Deluxe Coil Select+ is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Macina Prowler Sonic e-bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Macina Prowler Sonic has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
