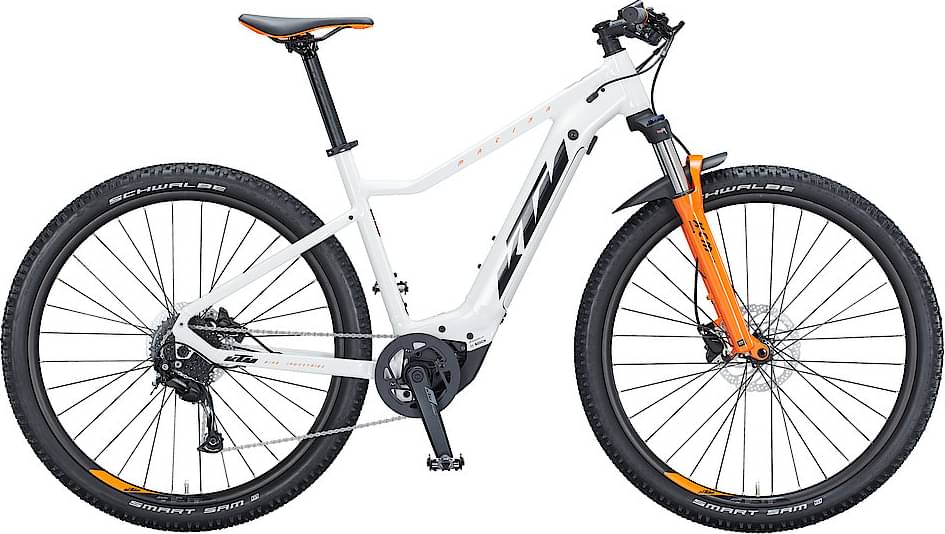

KTM MACINA RACE 292 2021
2021 E-bike
Estimate price |
3,431$
Weight | 22.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT500Wh Bosch Gen.4 / M-1766
Suspension Fork
Suntour XCM 34 coil 29" NLO 100mm 15x110 taper
Drivetrain
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG200-9 / 11-36
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp flat 2X 720mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 638 mm | 653 mm | 673 mm |
| Rake | 35 mm | 40 mm | 39 mm |
| Trail | 99 mm | 87 mm | 88 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 392 mm | 410 mm | 427 mm |
| Top Tube Length | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1092 mm | 1107 mm | 1127 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 741 mm | 757 mm | 788 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA RACE 292 belongs to the Ktm E Macina Race model. There are 12 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
KTM MACINA RACE 292 2021 is the cheapest e-bike model and costs 3131$. KTM MACINA RACE 271 2021 is the most expensive one and costs 3450$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 3131$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 27.64% more expensive.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, MACINA RACE 292 has a weight of 22.6 kg (49.82 lbs). In other words, this model is 2.7% lighter than the average Crosscountry e-bike.
MACINA RACE 292 components
Fork
KTM MACINA RACE 292 2021 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the MACINA RACE 292 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA RACE 292 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
